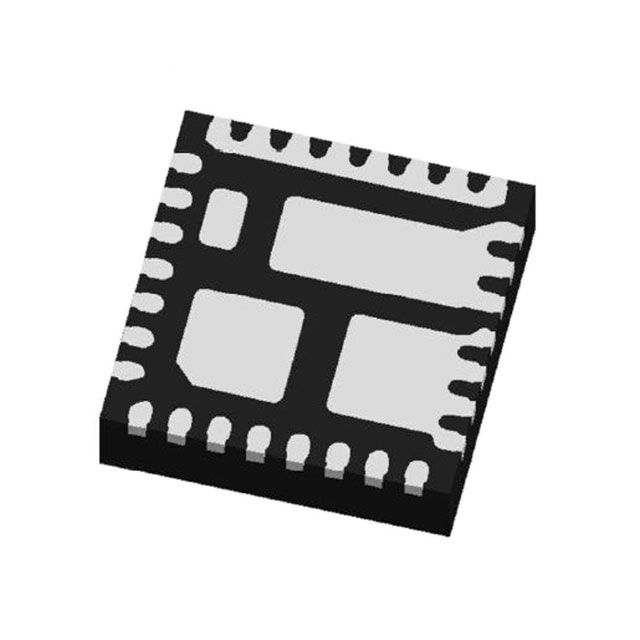

TDA21242AUMA1

Obsolete

Infineon Technologies

IC HALF BRIDGE DRIVER 25A 30IQFN

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC HALF BRIDGE DRIVER 25A 30IQFN

Technical Specifications

Parameters and characteristics for this part

Specification	TDA21242AUMA1

Applications	Synchronous Buck Converters
Current - Output / Channel	25 A
Fault Protection	Over Temperature, UVLO, Shoot-Through
Features	Bootstrap Circuit
Interface	PWM
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	30-PowerTFQFN
Supplier Device Package	PG-IQFN-30-2
Technology	Power MOSFET
Voltage - Load [Max]	16 V
Voltage - Load [Min]	4.5 V
Voltage - Supply [Max]	7 V
Voltage - Supply [Min]	4.5 V

Part	Technology	Applications	Features	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output / Channel	Interface	Mounting Type	Package / Case	Fault Protection	Load Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]
Infineon Technologies TDA21242AUMA1	Power MOSFET	Synchronous Buck Converters	Bootstrap Circuit	16 V	4.5 V	-40 °C	125 ¯C	25 A	PWM	Surface Mount	30-PowerTFQFN	Over Temperature Shoot-Through UVLO	Inductive	PG-IQFN-30-2	7 V	4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Half Bridge Driver Synchronous Buck Converters Power MOSFET PG-IQFN-30-2
