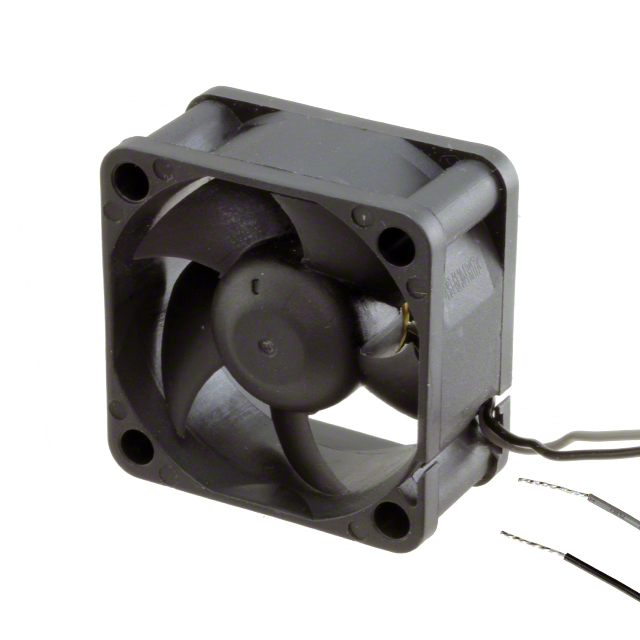

AUB0412HDYFM

Obsolete

Delta Electronics

FAN AXIAL 40X20MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 40X20MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Features	Air Flow	Air Flow	Noise	Fan Type	Lifetime @ Temp.	Material - Frame	Power (Watts)	RPM	Width [y]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Static Pressure	Static Pressure	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Termination	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Bearing Type	Approval Agency	Operating Temperature [Max]
Delta Electronics AUB0412VD-00	Locked Rotor Protection Speed Sensor (Tach)	0.269 m³/min	9.6 CFM	26.5 dB	Tubeaxial	80000 Hrs	Plastic	1.32 W	7500 RPM	20 mm	12 VDC	-20 °C	90 °C	90 °C	-20 C	58.8 Pa	0.236 in H2O	110 mA	40 mm	Square	40 mm	3 Wire Leads	Plastic	13.2 VDC	10.8 VDC	0.058 lb	26.31 g	Sleeve
Delta Electronics AUB0412HDYFM		0.224 mł/min	8 CFM	22 dB(A)	Tubeaxial	50000 Hrs	Plastic		6200 RPM	20 mm	12 VDC	-10 °C		60 °C	-10 °C	41.3 Pa	0.166 in H2O		40 mm	Square	40 mm	2 Wire Leads	Plastic	13.8 VDC	5 VDC	0.073 lb	33.11 g	Superflo	cURus VDE	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Superflo 8.0 CFM (0.224m³/min) 2 Wire Leads
