ZL40272LDG1
ActiveZL40272LDG1 12-OUTPUT PCIE HCSL FANOUT BUFFERS WITH INDIVIDUAL OUTPUT ENABLE 56 VQFN 8X8X1MM TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
ZL40272LDG1
ActiveZL40272LDG1 12-OUTPUT PCIE HCSL FANOUT BUFFERS WITH INDIVIDUAL OUTPUT ENABLE 56 VQFN 8X8X1MM TRAY ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZL40272LDG1 | ZL40272 Series |
|---|---|---|
| - | - | |
| Differential - Input:Output [custom] | True | True |
| Differential - Input:Output [custom] | True | True |
| Frequency - Max [Max] | 1.5 GHz | 1.5 GHz |
| Input | HCSL, LVDS, LVPECL, SSTL, CML, LVCMOS | HCSL, LVDS, LVPECL, SSTL, CML, LVCMOS |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | CML, LVDS, HCSL, LVPECL, LVCMOS, SSTL | CML, LVDS, HCSL, LVPECL, LVCMOS, SSTL |

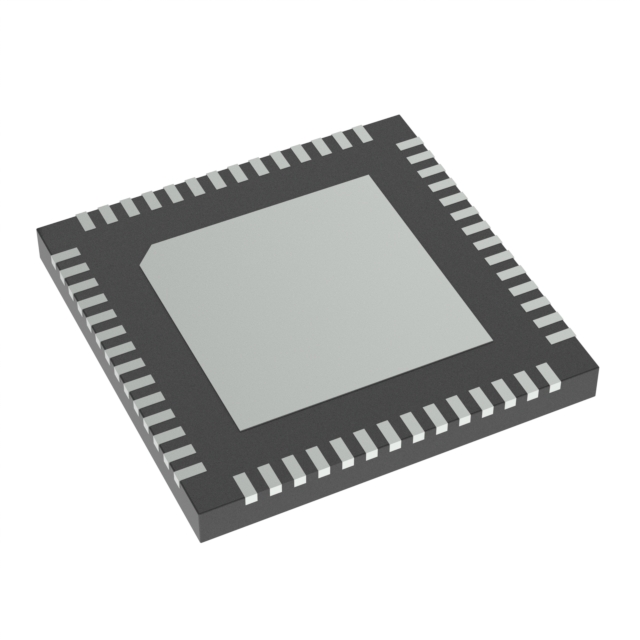

| Package / Case | 56-VFQFN Exposed Pad | 56-VFQFN Exposed Pad |
| Ratio - Input:Output | 2:12 | 2:12 |
| Supplier Device Package | 56-QFN (8x8) | 56-QFN (8x8) |
| Type | Fanout Buffer (Distribution) | Fanout Buffer (Distribution) |
| Voltage - Supply [Max] | 2.625 V, 3.465 V | 2.625 - 3.465 V |
| Voltage - Supply [Min] | 2.375 V, 3.135 V | 2.375 - 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.02 | |
| 25 | $ 8.34 | |||
| 100 | $ 8.06 | |||
| Microchip Direct | TRAY | 1 | $ 10.02 | |
| 25 | $ 8.35 | |||
| 100 | $ 7.59 | |||
| 1000 | $ 7.33 | |||
| 5000 | $ 7.25 | |||
| Newark | Each | 100 | $ 3.04 | |
ZL40272 Series
Low Skew, Low Jitter, 12 O/P HCSL Buffer
| Part | Supplier Device Package | Frequency - Max [Max] | Input | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Number of Circuits | Output | Type | Ratio - Input:Output | Mounting Type | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL40272LDG1 | 56-QFN (8x8) | 1.5 GHz | CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL | 2.625 V, 3.465 V | 2.375 V, 3.135 V | 56-VFQFN Exposed Pad | 1 | CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL | Fanout Buffer (Distribution) | 2:12 | Surface Mount | 85 °C | -40 °C | ||
Microchip Technology ZL40272LDG1 |
Description
General part information
ZL40272 Series
The ZL40272 is 3x12 HCSL/LVDS/LVPECL clock fan out buffer with ultra-low additive jitter of 24fs capable of operating at frequencies up to 1.5 GHz. Using the 12 output ZL40272 and utilizing the individual output pins or I2C interface, you can create hot-swappable PCIe clocktrees.
Applications include PCI Express generation 1/2/3/4/5 clock distribution, Intel QPI and UPI distribution, Servers, storage and data centers, switches and routers.
