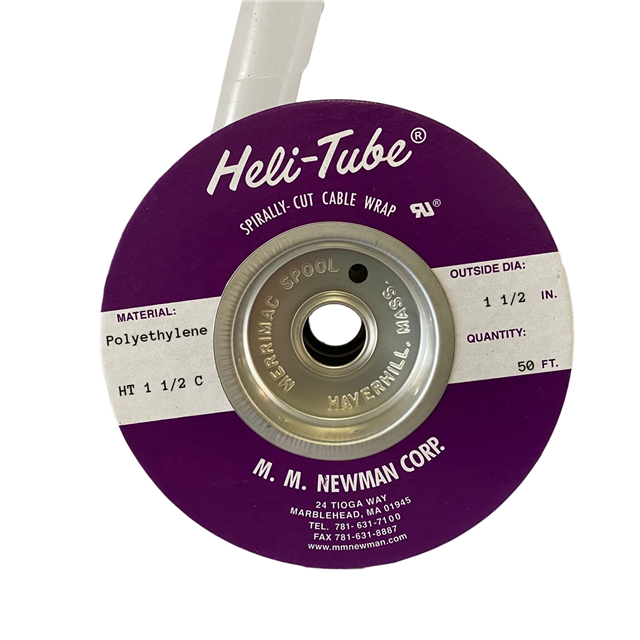

HT 1 1/2 C

Active

MM Newman Corporation

SPIRAL WRAP 1.3" X 50' NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 1 1/2 C

Active

MM Newman Corporation

SPIRAL WRAP 1.3" X 50' NATURAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HT 1 1/2 C	HT 1 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Natural	Black, Natural, Yellow, White
Diameter - Inside, Expanded [diameter]	254 mm	127 - 254 mm
Diameter - Inside, Expanded [diameter]	10 in	5 - 10 in
Diameter - Inside, Non-Expanded [diameter]	1.3 "	0.84 - 1.3 in
Diameter - Inside, Non-Expanded [diameter]	33.02 mm	21.34 - 33.02 mm
Diameter - Outside, Non-Expanded [diameter]	1.5 in	1 - 1.5 "
Diameter - Outside, Non-Expanded [diameter]	38.1 mm	25.4 - 38.1 mm
Environment Protection	-	UV Resistant
Features	Solvent Resistant, Chemical Resistant	Solvent Resistant, Chemical Resistant, Self Extinguishing
Heat Protection	-	Fire Resistant
Length	15.24 m	15.24 - 30.48 m
Length	-	100 ft
Length [x]	50 ft	50 ft
Material	Polyethylene (PE)	Polyethylene (PE), Nylon, Polytetrafluoroethylene (PTFE)
Material Flammability Rating	-	UL94 V-2, UL1441, UL94 V-0, UL VW-1
Operating Temperature [Max]	88 °C	80 - 260 °C
Operating Temperature [Min]	-60 °C	-268 - -20 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness	-	0.81 - 2.29 mm
Wall Thickness	-	0.032 - 0.09 in
Wall Thickness [custom]	2.54 mm	2.54 mm
Wall Thickness [custom]	0.1 in	0.1 in

HT 1 Series

SPIRAL WRAP 0.84" X 100' BLACK

Part	Abrasion Protection	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Wall Thickness	Wall Thickness	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type	Material	Features	Length [x]	Wall Thickness [custom]	Wall Thickness [custom]	Environment Protection	Material Flammability Rating	Heat Protection
MM Newman Corporation HT 1 UR	Abrasion Resistant	-60 °C	88 °C	100 ft	30.48 m	25.4 mm	1 "	Harness	21.34 mm	0.84 in	Black	2.03 mm	0.08 in	7 in	177.8 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant
MM Newman Corporation HT 1 1/2 C	Abrasion Resistant	-60 °C	88 °C		15.24 m	38.1 mm	1.5 in	Harness	33.02 mm	1.3 "	Natural			10 in	254 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant	50 ft	2.54 mm	0.1 in
MM Newman Corporation HT 1 N-B	Abrasion Resistant	-40 °C	121 °C	100 ft	30.48 m	25.4 mm	1 "	Harness	23.77 mm	0.936 in	Black	0.81 mm	0.032 in	7 in	177.8 mm	Spiral Wrap	Nylon	Chemical Resistant, Self Extinguishing, Solvent Resistant				UV Resistant
MM Newman Corporation HT 1 C YE	Abrasion Resistant	-60 °C	88 °C	100 ft	30.48 m	25.4 mm	1 "	Harness	21.34 mm	0.84 in	Yellow	2.03 mm	0.08 in	7 in	177.8 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant
MM Newman Corporation HT 1 1/4 UR	Abrasion Resistant	-60 °C	88 °C		15.24 m	31.75 mm	1.25 in	Harness			Black	2.29 mm	0.09 in	8 in	203.2 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant	50 ft
MM Newman Corporation HT 1 N	Abrasion Resistant	-40 °C	121 °C	100 ft	30.48 m	25.4 mm	1 "	Harness	23.77 mm	0.936 in	Natural	0.81 mm	0.032 in	7 in	177.8 mm	Spiral Wrap	Nylon	Chemical Resistant, Self Extinguishing, Solvent Resistant
MM Newman Corporation HT 1 R	Abrasion Resistant	-20 C	80 C	100 ft	30.48 m	25.4 mm	1 "	Harness	21.34 mm	0.84 in	White	2.03 mm	0.08 in	7 in	177.8 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant					UL94 V-2, UL1441	Fire Resistant
MM Newman Corporation HT 1 1/2 UR	Abrasion Resistant	-60 °C	88 °C		15.24 m	38.1 mm	1.5 in	Harness	33.02 mm	1.3 "	Black			10 in	254 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant	50 ft	2.54 mm	0.1 in
MM Newman Corporation HT 1 C WH	Abrasion Resistant	-60 °C	88 °C	100 ft	30.48 m	25.4 mm	1 "	Harness	21.34 mm	0.84 in	White	2.03 mm	0.08 in	7 in	177.8 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant
MM Newman Corporation HT 1 T	Abrasion Resistant	-268 °C	260 ░C	100 ft	30.48 m	25.4 mm	1 "	Harness	23.37 mm	0.92 in	Natural	1.02 mm	0.04 in	5 in	127 mm	Spiral Wrap	Polytetrafluoroethylene (PTFE)	Chemical Resistant, Solvent Resistant				UV Resistant	UL VW-1, UL94 V-0	Fire Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 254.95
		20	$ 190.06

Description

General part information

HT 1 Series

Spiral Wrap 1.500" (38.10mm) X 50.00' (15.24m) Natural
