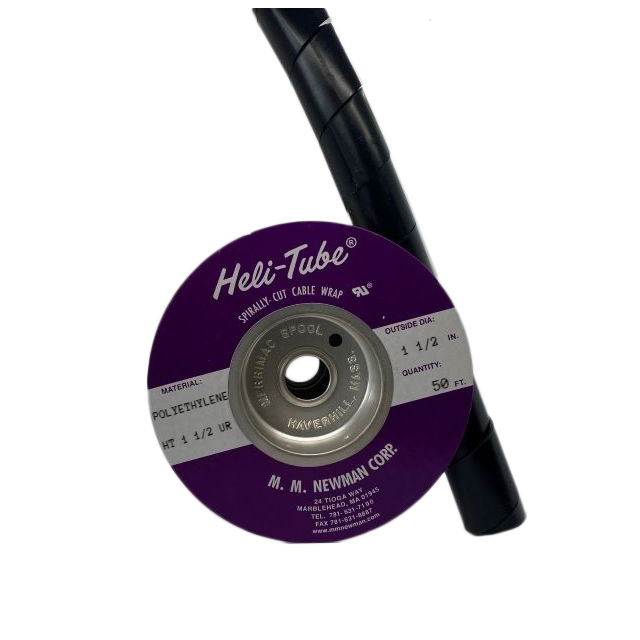

HT 1 1/2 UR

Active

MM Newman Corporation

SPIRAL WRAP 1.3" X 50' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 1 1/2 UR

Active

MM Newman Corporation

SPIRAL WRAP 1.3" X 50' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 267.03
		20	$ 216.29

Description

General part information

HT 1 Series

Spiral Wrap 1.500" (38.10mm) X 50.00' (15.24m) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HT 1 1/2 UR	HT 1 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Black	Black, Natural, Yellow, White
Diameter - Inside, Expanded [diameter]	254 mm	127 - 254 mm
Diameter - Inside, Expanded [diameter]	10 in	5 - 10 in
Diameter - Inside, Non-Expanded [diameter]	1.3 "	0.84 - 1.3 in
Diameter - Inside, Non-Expanded [diameter]	33.02 mm	21.34 - 33.02 mm
Diameter - Outside, Non-Expanded [diameter]	1.5 in	1 - 1.5 "
Diameter - Outside, Non-Expanded [diameter]	38.1 mm	25.4 - 38.1 mm
Environment Protection	-	UV Resistant
Features	Solvent Resistant, Chemical Resistant	Solvent Resistant, Chemical Resistant, Self Extinguishing
Heat Protection	-	Fire Resistant
Length	15.24 m	15.24 - 30.48 m
Length	-	100 ft
Length [x]	50 ft	50 ft
Material	Polyethylene (PE)	Polyethylene (PE), Nylon, Polytetrafluoroethylene (PTFE)
Material Flammability Rating	-	UL94 V-2, UL1441, UL94 V-0, UL VW-1
Operating Temperature [Max]	88 °C	80 - 260 °C
Operating Temperature [Min]	-60 °C	-268 - -20 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness	-	0.81 - 2.29 mm
Wall Thickness	-	0.032 - 0.09 in
Wall Thickness [custom]	2.54 mm	2.54 mm
Wall Thickness [custom]	0.1 in	0.1 in

HT 1 Series

SPIRAL WRAP 0.84" X 100' BLACK

Part	Abrasion Protection	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Wall Thickness	Wall Thickness	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type	Material	Features	Length [x]	Wall Thickness [custom]	Wall Thickness [custom]	Environment Protection	Material Flammability Rating	Heat Protection
MM Newman Corporation HT 1 UR	Abrasion Resistant	-60 °C	88 °C	100 ft	30.48 m	25.4 mm	1 "	Harness	21.34 mm	0.84 in	Black	2.03 mm	0.08 in	7 in	177.8 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant
MM Newman Corporation HT 1 1/2 C	Abrasion Resistant	-60 °C	88 °C		15.24 m	38.1 mm	1.5 in	Harness	33.02 mm	1.3 "	Natural			10 in	254 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant	50 ft	2.54 mm	0.1 in
MM Newman Corporation HT 1 N-B	Abrasion Resistant	-40 °C	121 °C	100 ft	30.48 m	25.4 mm	1 "	Harness	23.77 mm	0.936 in	Black	0.81 mm	0.032 in	7 in	177.8 mm	Spiral Wrap	Nylon	Chemical Resistant, Self Extinguishing, Solvent Resistant				UV Resistant
MM Newman Corporation HT 1 C YE	Abrasion Resistant	-60 °C	88 °C	100 ft	30.48 m	25.4 mm	1 "	Harness	21.34 mm	0.84 in	Yellow	2.03 mm	0.08 in	7 in	177.8 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant
MM Newman Corporation HT 1 1/4 UR	Abrasion Resistant	-60 °C	88 °C		15.24 m	31.75 mm	1.25 in	Harness			Black	2.29 mm	0.09 in	8 in	203.2 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant	50 ft
MM Newman Corporation HT 1 N	Abrasion Resistant	-40 °C	121 °C	100 ft	30.48 m	25.4 mm	1 "	Harness	23.77 mm	0.936 in	Natural	0.81 mm	0.032 in	7 in	177.8 mm	Spiral Wrap	Nylon	Chemical Resistant, Self Extinguishing, Solvent Resistant
MM Newman Corporation HT 1 R	Abrasion Resistant	-20 C	80 C	100 ft	30.48 m	25.4 mm	1 "	Harness	21.34 mm	0.84 in	White	2.03 mm	0.08 in	7 in	177.8 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant					UL94 V-2, UL1441	Fire Resistant
MM Newman Corporation HT 1 1/2 UR	Abrasion Resistant	-60 °C	88 °C		15.24 m	38.1 mm	1.5 in	Harness	33.02 mm	1.3 "	Black			10 in	254 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant	50 ft	2.54 mm	0.1 in
MM Newman Corporation HT 1 C WH	Abrasion Resistant	-60 °C	88 °C	100 ft	30.48 m	25.4 mm	1 "	Harness	21.34 mm	0.84 in	White	2.03 mm	0.08 in	7 in	177.8 mm	Spiral Wrap	Polyethylene (PE)	Chemical Resistant, Solvent Resistant
MM Newman Corporation HT 1 T	Abrasion Resistant	-268 °C	260 ░C	100 ft	30.48 m	25.4 mm	1 "	Harness	23.37 mm	0.92 in	Natural	1.02 mm	0.04 in	5 in	127 mm	Spiral Wrap	Polytetrafluoroethylene (PTFE)	Chemical Resistant, Solvent Resistant				UV Resistant	UL VW-1, UL94 V-0	Fire Resistant
