XAN.M22.GLA.6A

Active

LEMO

CONN PLUG MALE 22P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XAN.M22.GLA.6A

Active

LEMO

CONN PLUG MALE 22P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XAN.M22 Series

22 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XAN.M22.GLA.6A	XAN.M22 Series

Applications	Testing Equipment, Medical, Industrial, Measurement	Testing Equipment, Medical, Industrial, Measurement
Backshell Material, Plating	Sulfone	Sulfone
Cable Opening	-	0.157 in
Cable Opening	-	0.205 in
Cable Opening	-	4 mm
Cable Opening	-	5.2 mm
Cable Opening [custom]	0.209 in, 0.256 in	0.209 - 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm	5.3 - 6.5 mm
Color	Gray, Blue	Gray, Blue, White
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	22 positions	22 positions
Operating Temperature [Max]	170 °C	170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	N	N
Primary Material	Plastic	Plastic
Shell Material	Sulfone	Sulfone
Shell Size - Insert	M22	M22
Shielding	Unshielded	Unshielded

XAN.M22 Series

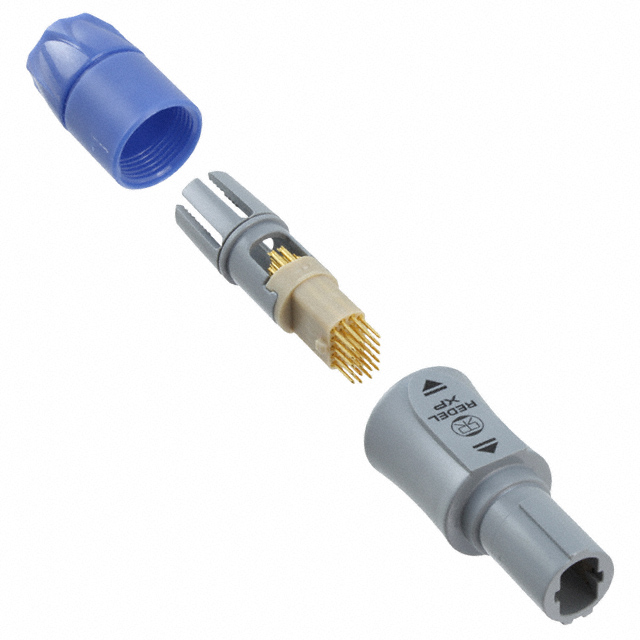

CONN PLUG MALE 22P GOLD SLDR CUP

Part	Primary Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Mounting Type	Connector Type	Shell Size - Insert	Contact Finish - Mating	Applications	Insert Material	Backshell Material, Plating	Ingress Protection	Fastening Type	Features	Shell Material	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Color	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
LEMO XAN.M22.GLA.6GZ	Plastic	Unshielded	-50 °C	170 °C	N	Free Hanging (In-Line)	Male Pins, Plug	M22	Gold	Industrial, Measurement, Medical, Testing Equipment	Polyetheretherketone (PEEK)	Sulfone	IP50	Push-Pull	Backshell	Sulfone	22 positions	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Gray	2 A
LEMO XAN.M22.GLA.6A	Plastic	Unshielded	-50 °C	170 °C	N	Free Hanging (In-Line)	Male Pins, Plug	M22	Gold	Industrial, Measurement, Medical, Testing Equipment	Polyetheretherketone (PEEK)	Sulfone	IP50	Push-Pull	Backshell	Sulfone	22 positions	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Blue, Gray	2 A
LEMO XAN.M22.GLA.6G	Plastic	Unshielded	-50 °C	170 °C	N	Free Hanging (In-Line)	Male Pins, Plug	M22	Gold	Industrial, Measurement, Medical, Testing Equipment	Polyetheretherketone (PEEK)	Sulfone	IP50	Push-Pull	Backshell	Sulfone	22 positions	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Gray	2 A
LEMO XAN.M22.BLA.6B	Plastic	Unshielded	-50 °C	170 °C	N	Free Hanging (In-Line)	Male Pins, Plug	M22	Gold	Industrial, Measurement, Medical, Testing Equipment	Polyetheretherketone (PEEK)	Sulfone	IP50	Push-Pull	Backshell	Sulfone	22 positions	0.209 in, 0.256 in	5.3 mm, 6.5 mm	White	2 A
LEMO XAN.M22.GLA.5G	Plastic	Unshielded	-50 °C	170 °C	N	Free Hanging (In-Line)	Male Pins, Plug	M22	Gold	Industrial, Measurement, Medical, Testing Equipment	Polyetheretherketone (PEEK)	Sulfone	IP50	Push-Pull	Backshell	Sulfone	22 positions			Gray	2 A	0.157 in	0.205 in	4 mm	5.2 mm
