18280-2SG-318

Active

Conxall/Switchcraft

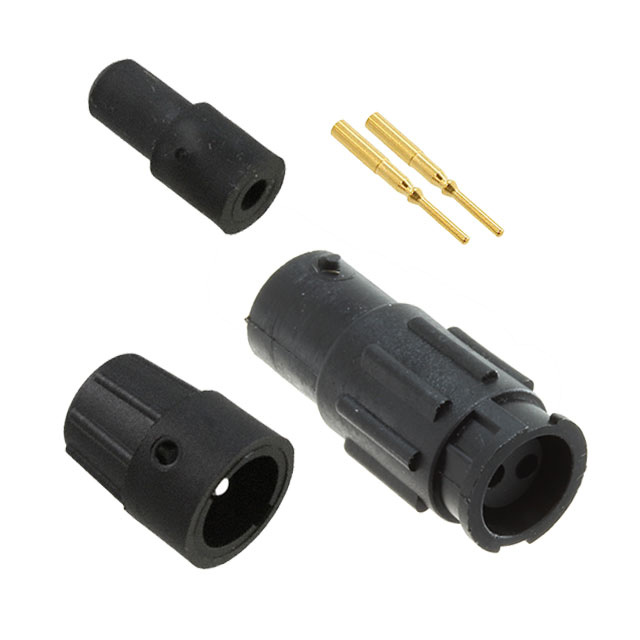

CONN RCPT FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	18280-2SG-318	18280-2S Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [Max] [custom]	0.2 in	0.2 in
Cable Opening [Max] [custom]	5.08 mm	5.08 mm
Cable Opening [Min] [custom]	4.57 mm	4.57 mm
Cable Opening [Min] [custom]	0.18 in	0.18 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 VAC	600 VAC

CONN RCPT FMALE 2POS GOLD CRIMP

Part	Voltage Rating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Backshell Material, Plating	Primary Material	Shielding	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Features	Mounting Type	Termination	Connector Type	Contact Finish - Mating	Color	Contact Material	Ingress Protection	Orientation	Fastening Type	Applications	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 18280-2SG-318	600 VAC	UL94 HB	85 °C	-40 °C	2	Thermoplastic	Plastic	Unshielded	4.57 mm	0.18 in	0.2 in	5.08 mm	Backshell	Free Hanging (In-Line)	Crimp	Receptacle, Female Sockets	Gold	Black	Copper Alloy	IP67 - Dust Tight, Waterproof	Keyed	Bayonet Lock	Data, Industrial, Instrumentation, Medical	7.5 A
Conxall/Switchcraft 18280-2SG-311	600 VAC	UL94 HB	85 °C	-40 °C	2	Thermoplastic	Plastic	Unshielded					Backshell	Free Hanging (In-Line)	Crimp	Receptacle, Female Sockets	Gold	Black	Copper Alloy	IP67 - Dust Tight, Waterproof	Keyed	Bayonet Lock	Data, Industrial, Instrumentation, Medical	7.5 A	2.29 mm	0.09 in, 0.14 in	3.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Crimp
