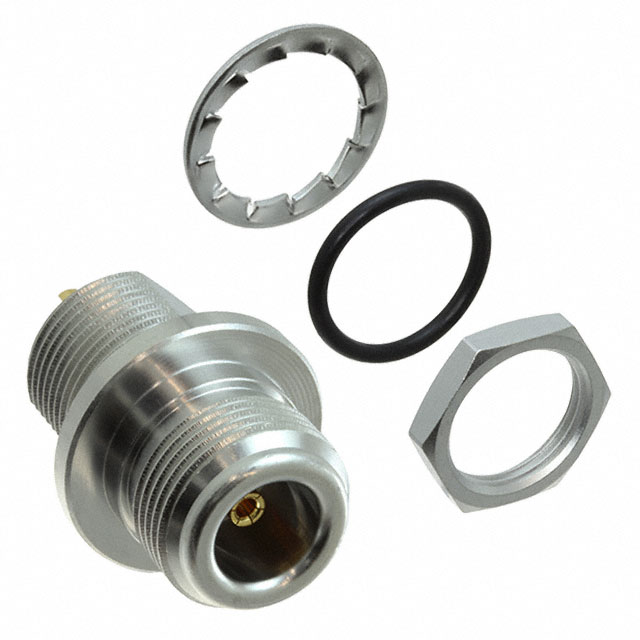

53K501-200N5

Active

Rosenberger

CONN N TYPE JACK ST 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN N TYPE JACK ST 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	53K501-200N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-25 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Impedance	Housing Color	Body Material	Connector Type	Voltage Rating	Includes	Center Contact Plating	Frequency - Max [Max]	Contact Termination	Shield Termination	Dielectric Material	Mating Cycles	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Center Contact Material	Mounting Feature	Body Finish	Number of Ports	Cable Group
Rosenberger 53K501-200N5	50 Ohms	Silver	Brass	Female Socket Jack	500 V	1 Connector 1 Lockwasher 1 Nut	Gold	11 GHz	Solder Cup	Solder	Polytetrafluoroethylene (PTFE)	500	IP67 - Dust Tight Waterproof	-25 °C	110 °C	N Type	Beryllium Copper	Bulkhead - Rear Side Nut	White Bronze	1
Rosenberger 53K501-115N5	50 Ohms	Silver	Brass	Female Socket Jack	500 V		Gold	11 GHz	Crimp	Crimp	Polytetrafluoroethylene (PTFE)	500		-25 °C	110 °C	N Type	Beryllium Copper	Bulkhead - Front Side Nut	White Bronze	1	RG-213

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
