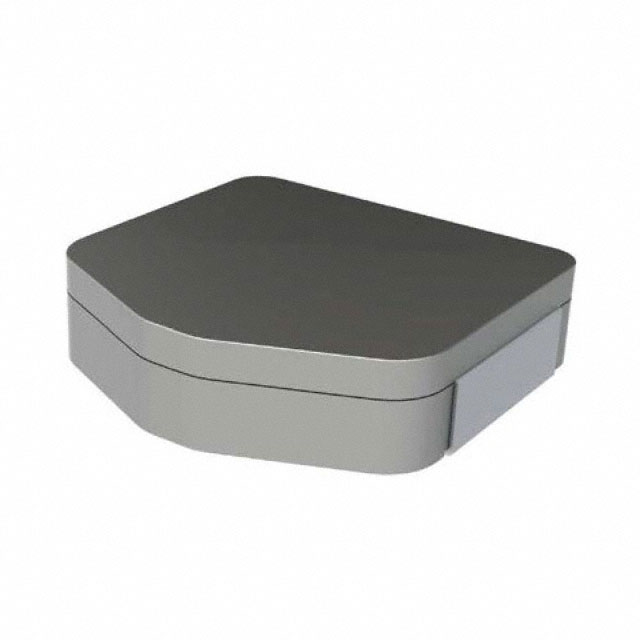

MPX1D2213L330 - METCOM MPX Series

MPX1D2213L330

Active
KEMET

INDUCTOR, 33UH, SHIELDED, 18A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMPX1D2213L330 Spec+3
MPX1D2213L330 - METCOM MPX Series

MPX1D2213L330

Active
KEMET

INDUCTOR, 33UH, SHIELDED, 18A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetMPX1D2213L330 Spec+3

Technical Specifications

Parameters and characteristics for this part

SpecificationMPX1D2213L330
Current - Saturation (Isat)20.5 A
Current Rating (Amps)17.5 A
DC Resistance (DCR)16 mOhm
Frequency - Self Resonant2.9 MHz
Height - Seated (Max) [Max] [z]13 mm
Height - Seated (Max) [Max] [z]0.512 "
Inductance33 µH
Inductance Frequency - Test100 kHz
Material - CoreMetal Composite
Mounting TypeSurface Mount
Operating Temperature [Max]155 °C
Operating Temperature [Min]-55 °C
Package / CaseNonstandard
ShieldingShielded
Size / Dimension [x]0.886 "
Size / Dimension [x]22.5 mm
Size / Dimension [y]0.866 in
Size / Dimension [y]22 mm
Tolerance20 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 11.94
10$ 9.82
25$ 9.08
Digi-Reel® 1$ 11.94
10$ 9.82
25$ 9.08
Tape & Reel (TR) 50$ 8.56
100$ 8.08
150$ 7.80
250$ 7.48
350$ 7.38
NewarkEach (Supplied on Cut Tape) 1$ 11.46
10$ 10.22
25$ 9.60
50$ 9.29
100$ 8.83
250$ 8.67

Description

General part information

MPX1D2213 Series

33 µH Shielded Drum Core, Wirewound Inductor 17.5 A 16mOhm Max Nonstandard
