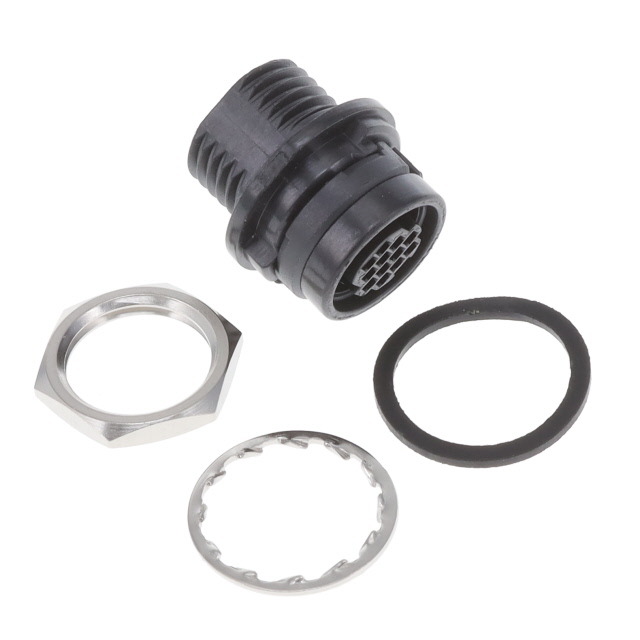

MCRK-8-S

Active

Samtec Inc.

CONN CIRCULAR SKT 12 POS CRIMP ST CABLE MOUNT 12 TERMINAL 1 PORT ACCLIMATE™ BAG

Search across all available documentation for this part.

Active

Samtec Inc.

CONN CIRCULAR SKT 12 POS CRIMP ST CABLE MOUNT 12 TERMINAL 1 PORT ACCLIMATE™ BAG

Technical Specifications

Parameters and characteristics for this part

Specification	MCRK-8-S

Connector Type	Receptacle Housing
Contact Shape	Rectangular
Contact Type	Crimp
Fastening Type	Push-Pull
Housing Color	Black
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	8
Shielding	Unshielded
Type	For Female Sockets

Part	Includes	Type	Ingress Protection	Shell Size - Insert	Orientation	Contact Type	Mounting Feature	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Housing Color	Note	Insert Material	Number of Positions	Shell Material	Contact Shape	Fastening Type
Samtec Inc. MCRK-8-S	1 Connector 1 Gasket 1 Lockwasher 1 Nut	For Female Sockets	IP67 - Dust Tight Waterproof	8	Keyed	Crimp	Bulkhead - Rear Side Nut	Receptacle Housing	-20 C	80 C	Unshielded	Black	Contacts Not Included	Polyphenylene Sulfide (PPS)	12	Polybutylene Terephthalate (PBT)	Rectangular	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle Housing Panel Mount
