PE000DM6E

Active

TE Connectivity Corcom Filters

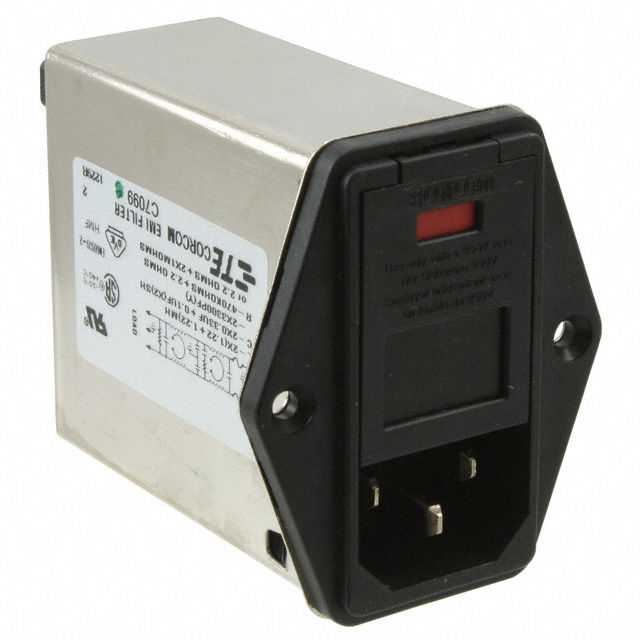

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE000DM6E	PE00 Series

Accomodates a Fuse	True	True
Applications	-	General Purpose
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Configuration	-	Single Stage
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current	-	3 A
Current Rating - Appliance Inlet	6 A	6 A
Current Rating - Filter	6 A	6 A
Features	Shielded	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial	Single Phase, Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Operating Temperature	-	-10 °C
Operating Temperature	-	40 °C
Panel Cutout Dimensions [x]	28.45 mm	28.45 mm
Panel Cutout Dimensions [y]	55.91 mm	55.91 mm
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Termination Style	-	Quick Connect
Voltage - Rated DC	-	80 V
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

LINE FILTER 80VDC 3A PANEL MNT

Part	Voltage - Rated DC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Configuration	Filter Type	Applications	Current	Approval Agency	Current Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Style	Mounting Type	Accomodates a Fuse	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Features	Connector Type	Current Rating - Filter	Fuse Holder, Drawer
TE Connectivity Corcom Filters PE000DD3D	80 V	-10 °C	40 °C	Quick Connect	Single Stage	Single Phase	General Purpose	3 A	CSA, UL, VDE
TE Connectivity Corcom Filters PE000DM6E						Filtered (EMI, RFI) - Commercial			CSA, UL, VDE	6 A	55.91 mm	28.45 mm	IEC 320-C14	Flange, Panel Mount		0.187 "	4.7 mm	Quick Connect	120 VAC	Shielded	Receptacle, Male Blades - Module	6 A	Fuse Holder, Twin Fused
