BGS12AL76E6327XTMA1

Obsolete

Infineon Technologies

IC RF SWITCH SPDT 3GHZ TSLP7-6

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC RF SWITCH SPDT 3GHZ TSLP7-6

Technical Specifications

Parameters and characteristics for this part

Specification	BGS12AL76E6327XTMA1

Circuit	SPDT
Features	Single Line Control, DC Blocked
Frequency Range [Max]	3 GHz
Frequency Range [Min]	30 MHz
Impedance	50 Ohms
Insertion Loss	0.5 dB
Isolation	25 dB
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C

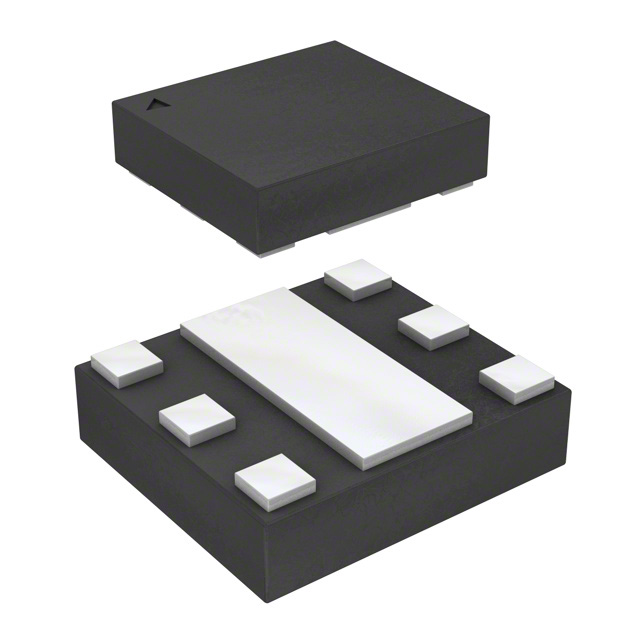

Package / Case	6-XFDFN Exposed Pad
RF Type	General Purpose
Supplier Device Package	PG-TSLP-7-6
Test Frequency	2 GHz
Topology	Reflective
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.4 V

Part	Package / Case	Frequency Range [Max]	Frequency Range [Min]	RF Type	Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Topology	Features	Mounting Type	Test Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Insertion Loss	Supplier Device Package	Circuit
Infineon Technologies BGS12AL76E6327XTMA1	6-XFDFN Exposed Pad	3 GHz	30 MHz	General Purpose	25 dB	-30 ░C	85 °C	50 Ohms	Reflective	DC Blocked Single Line Control	Surface Mount	2 GHz	2.4 V	3.6 V	0.5 dB	PG-TSLP-7-6	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Switch IC General Purpose SPDT 3 GHz 50Ohm PG-TSLP-7-6
