C3CPS-5036M

Active

CW Industries

IDC CABLE - CKC50S/AE50M/CPC50S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKC50S/AE50M/CPC50S

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Cable Termination	Shielding	Usage	Contact Finish	Connector Type	Number of Positions	Pitch - Connector	Pitch - Connector	Features	Pitch - Cable	Pitch - Cable	Length	Length	Length	Color
CW Industries C3CPS-5018G	2.54 µm	100 µin	457.2 mm	1.5 ft	IDC	Unshielded	Board In	Tin	Socket to PCB	50	0.1 in	2.54 mm	Polarizing Key	0.05 "	1.27 mm
CW Industries C3CPS-5006G	2.54 µm	100 µin			IDC	Unshielded	Board In	Tin	Socket to PCB	50	0.1 in	2.54 mm	Polarizing Key	0.05 "	1.27 mm	152.4 mm	6 "	0.5 '
CW Industries C3CPS-5036M	2.54 µm	100 µin	914.4 mm	3 ft	IDC	Unshielded	Board In	Tin	Socket to PCB	50	0.1 in	2.54 mm	Polarizing Key	0.05 "	1.27 mm				Multiple Ribbon
CW Industries C3CPS-5018M	2.54 µm	100 µin	457.2 mm	1.5 ft	IDC	Unshielded	Board In	Tin	Socket to PCB	50	0.1 in	2.54 mm	Polarizing Key	0.05 "	1.27 mm				Multiple Ribbon
CW Industries C3CPS-5006M	2.54 µm	100 µin			IDC	Unshielded	Board In	Tin	Socket to PCB	50	0.1 in	2.54 mm	Polarizing Key	0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

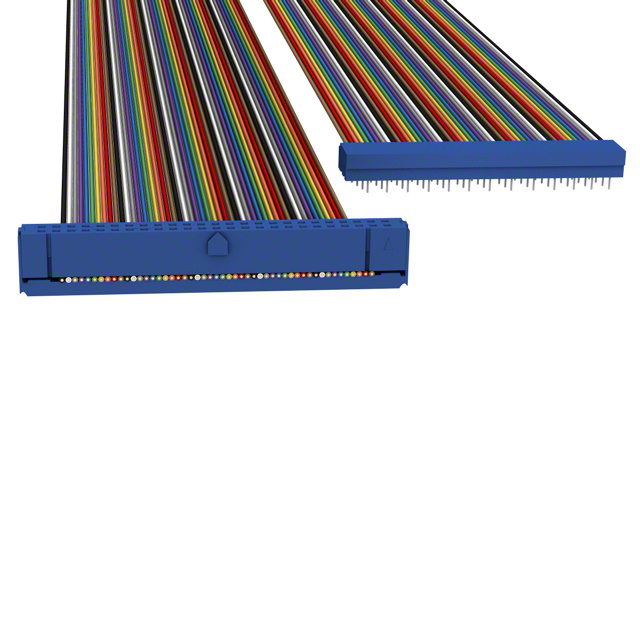

50 Position Cable Assembly Rectangular Socket to PCB 3.00' (914.40mm)
