RF2-1A-DC-2-GL

Active

Switch Components

SWITCH ROCKER SPST 16A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPST 16A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.18

General part information

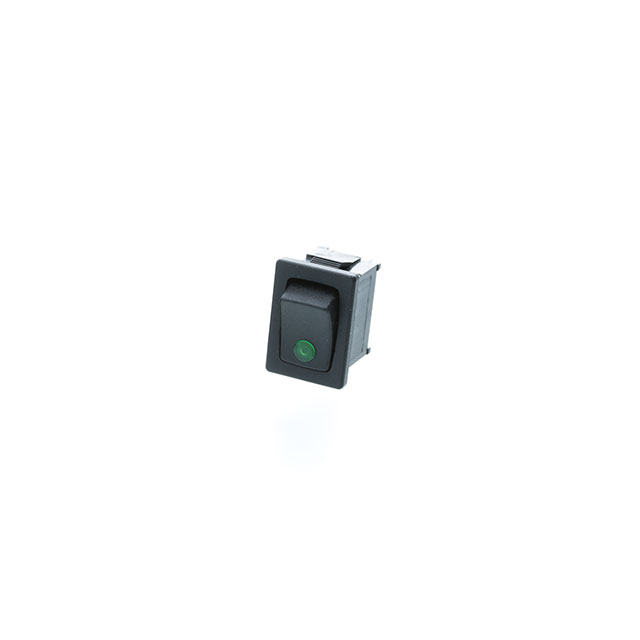

Rocker Switch SPST 16A (DC) Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RF2-1A-DC-2-GL	RF2-1A Series

Actuator Marking	No Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated	Concave (Curved) - Illuminated
Approval Agency	CSA, cURus, ENEC	CSA, cURus, ENEC
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	16 A	16 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	LED, Green	LED, Green, Red
Illumination Voltage (Nominal)	12 VDC	12 VDC
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [x]	19.2 mm	19.2 mm
Panel Cutout Dimensions [y]	13 mm	13 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER SPST 16A 12V

Part	Electrical Life	Color - Actuator/Cap	Mounting Type	Current Rating (Amps)	Mechanical Life	Switch Function	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Marking	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Actuator Type	Illumination Type, Color	Voltage Rating - DC	Termination Style
Switch Components RF2-1A-DC-2-GL	6000 Cycles	Black	Panel Mount, Snap-In	16 A	10000 Steps	On-Off	SPST	13 mm	19.2 mm	No Marking	CSA, cURus, ENEC	-25 °C	85 °C	12 VDC	Concave (Curved) - Illuminated	Green, LED	12 V	Quick Connect - 0.187" (4.7mm)
Switch Components RF2-1A-DC-2-RL	6000 Cycles	Black	Panel Mount, Snap-In	16 A	10000 Steps	On-Off	SPST	13 mm	19.2 mm	No Marking	CSA, cURus, ENEC	-25 °C	85 °C	12 VDC	Concave (Curved) - Illuminated	LED, Red	12 V	Quick Connect - 0.187" (4.7mm)
