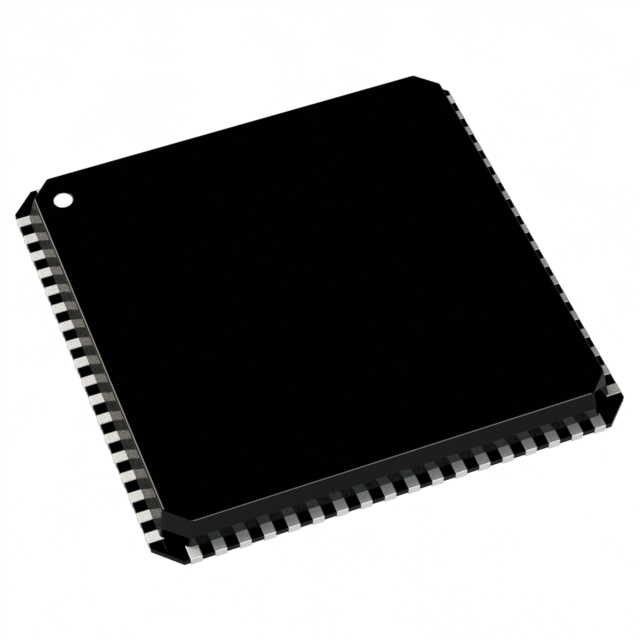

SI53119-A01AGMR

Obsolete

Skyworks Solutions Inc.

IC BUFFER ZDB PCIE 1:19 72-QFN

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

IC BUFFER ZDB PCIE 1:19 72-QFN

Technical Specifications

Parameters and characteristics for this part

Specification	SI53119-A01AGMR

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Frequency - Max [Max]	133.33 MHz
Input	Clock
Main Purpose	Intel QPI, PCI Express (PCIe)
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	HCSL
Package / Case	72-VFQFN Exposed Pad
PLL	True
Ratio - Input:Output	1:19
Supplier Device Package	72-QFN (10x10)
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	3.135 V

Part	Ratio - Input:Output	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Main Purpose	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Supplier Device Package	Frequency - Max [Max]	Input	Output
Skyworks Solutions Inc. SI53119-A01AGMR	1:19	1	85 °C	-40 °C	Surface Mount	Intel QPI PCI Express (PCIe)	3.465 V	3.135 V	72-VFQFN Exposed Pad	72-QFN (10x10)	133.33 MHz	Clock	HCSL
Skyworks Solutions Inc. SI53119-A01AGM	1:19	1	85 °C	-40 °C	Surface Mount	Intel QPI PCI Express (PCIe)	3.465 V	3.135 V	72-VFQFN Exposed Pad	72-QFN (10x10)	133.33 MHz	Clock	HCSL
Skyworks Solutions Inc. SI53119-A03AGMR					Surface Mount				72-VFQFN Exposed Pad	72-QFN (10x10)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Intel QPI, PCI Express (PCIe) IC 133.33MHz 1 Output 72-QFN (10x10)
