842-038-520-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 38POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-038-520-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 38POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-038-520-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
842-038 Series
...
| Part | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Read Out | Pitch [x] | Pitch [x] | Material - Insulation | Gender | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Mounting Type | Contact Type | Card Type | Flange Feature | Number of Positions/Bay/Row [custom] | Termination | Contact Material | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Dual | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Female | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Through Hole | Cantilever | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | 19 | Solder | Copper Alloy | 2 | ||
EDAC Inc. | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Dual | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Female | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Through Hole | Cantilever | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 19 | Wire Wrap | Copper Alloy | 2 | 3.96 mm | 0.156 in |
EDAC Inc. | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Dual | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Female | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Through Hole | Cantilever | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | 19 | Wire Wrap | Copper Alloy | 2 | 3.25 mm | 0.128 " |
EDAC Inc. | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Single | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Female | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Through Hole | Cantilever | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 38 | Solder Eyelet(s) | Copper Alloy | 1 | 3.25 mm | 0.128 " |
EDAC Inc. | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Single | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Female | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Through Hole | Cantilever | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 38 | Solder | Copper Alloy | 1 | ||
EDAC Inc. | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Dual | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Female | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Through Hole Right Angle | Cantilever | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 19 | Solder | Copper Alloy | 2 | 3.96 mm | 0.156 in |
EDAC Inc. | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Dual | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Female | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Through Hole | Cantilever | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 19 | Wire Wrap | Copper Alloy | 2 | ||
EDAC Inc. | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Dual | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Female | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Through Hole | Cantilever | Non Specified - Dual Edge | Floating Bobbin Flush Mount | 19 | Solder | Copper Alloy | 2 | 2.95 mm | 0.116 in |
EDAC Inc. | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Dual | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Female | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Through Hole | Cantilever | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 19 | Wire Wrap | Copper Alloy | 2 | 3.96 mm | 0.156 in |
EDAC Inc. | 1 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Single | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Female | 38 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Through Hole | Cantilever | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 38 | Wire Wrap | Copper Alloy | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-038 Series

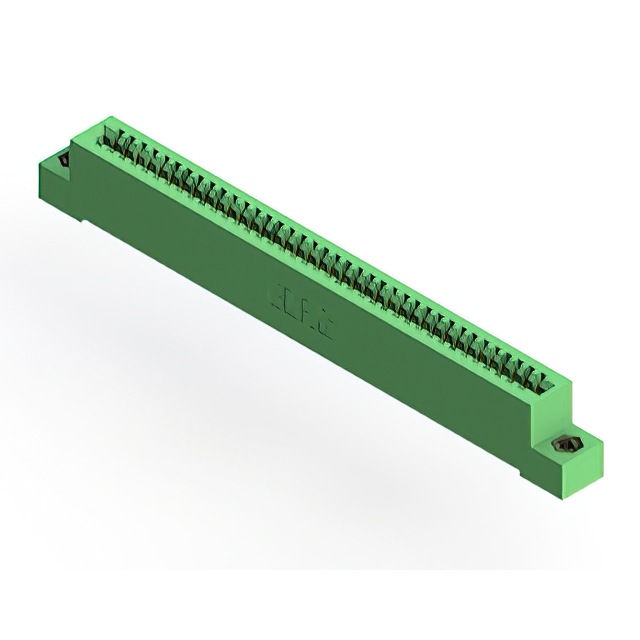

38 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
Documents
Technical documentation and resources
