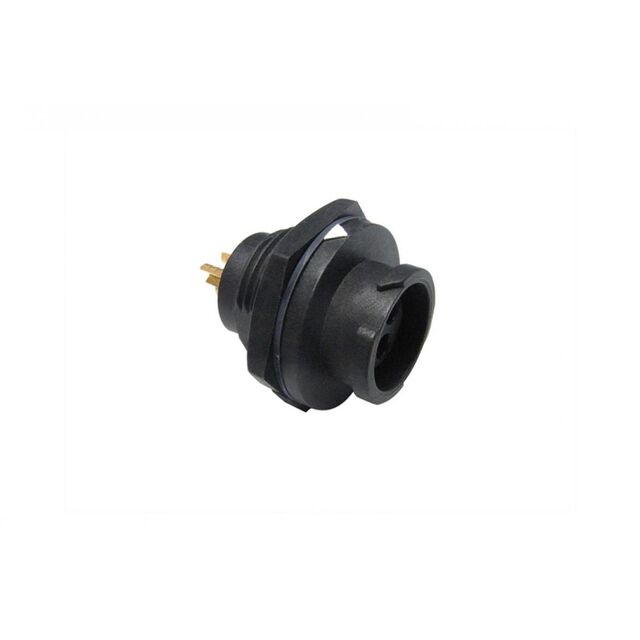

BD-04RMMS-QC8001

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 5A, 04 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS COM

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 5A, 04 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS COM

Technical Specifications

Parameters and characteristics for this part

Specification	BD-04RMMS-QC8001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Twist
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Orientation	Primary Material	Shell Material	Color	Fastening Type	Connector Type	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Contact Material	Insert Material	Voltage Rating	Mounting Feature	Shielding	Ingress Protection
Amphenol LTW BD-04RMMS-QC8001	Keyed	Plastic	Glass Filled Nylon Polyamide (PA)	Black	Push-Twist	Male Pins Receptacle	Gold	5 A	4	90 °C	-40 °C	B	Copper Alloy	Polyamide (PA) Nylon Glass Filled	300 VDC	Bulkhead - Front Side Nut	Unshielded	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

No documents available
