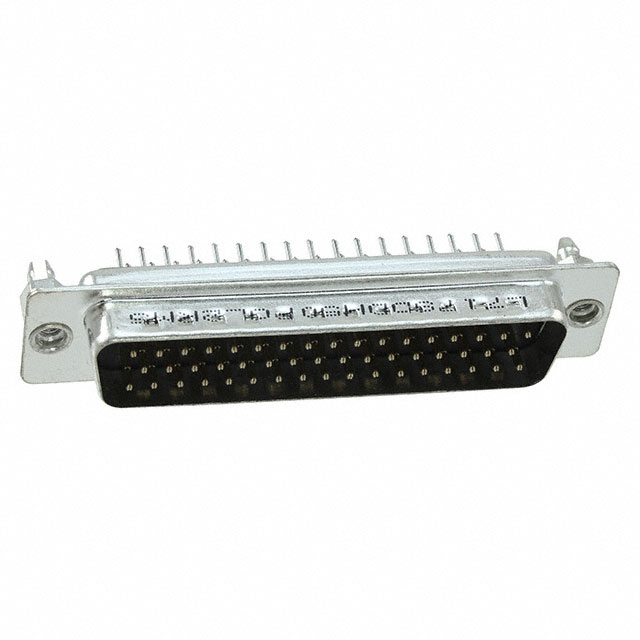

L717SDDH50POL2RM5

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 50POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717SDDH50POL2RM5

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 50POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDDH50POL2RM5

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	250 VDC

L717SDDH50 Series

Part	Dielectric Material	Termination	Contact Finish Thickness	Current Rating (Amps)	Contact Form	Connector Style	Contact Finish	Features	Connector Type	Number of Positions	Contact Type	Material Flammability Rating	Shell Size, Connector Layout	Contact Material	Mounting Type	Voltage Rating	Color	Number of Rows	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717SDDH50POL2RM5G	Thermoplastic Glass Filled	Solder	Flash	3 A	Stamped	D-Sub	Gold	Board Lock Grounding Indents	Male Pins Plug	50	Signal	UL94 V-0	5	Brass	Through Hole	250 VDC	Black	3	4-40 Board Side	-55 °C	125 °C
Amphenol ICC (Commercial Products) L717SDDH50P	Thermoplastic Glass Filled		Flash	3 A	Stamped	D-Sub	Gold	Grounding Indents	Male Pins Plug	50	Signal	UL94 V-0	5	Brass	Free Hanging (In-Line)	250 VDC	Black	3	Cable Side	-55 °C	125 °C
Amphenol ICC (Commercial Products) L717SDDH50POL2RM8	Thermoplastic Glass Filled	Solder	Flash	3 A	Stamped	D-Sub	Gold	Board Lock Grounding Indents	Male Pins Plug	50	Signal	UL94 V-0	5	Brass	Through Hole	250 VDC	Black	3	Board Side (4-40) Mating Side Female Screwlock (4-40)	-55 °C	125 °C
Amphenol ICC (Commercial Products) L717SDDH50POL2RM5	Thermoplastic Glass Filled	Solder	Flash	3 A	Stamped	D-Sub	Gold	Board Lock Grounding Indents	Male Pins Plug	50	Signal	UL94 V-0	5	Brass	Through Hole	250 VDC	Black	3	4-40 Board Side	-55 °C	125 °C
Amphenol ICC (Commercial Products) L717SDDH50POL2C309	Thermoplastic Glass Filled	Solder		3 A	Stamped	D-Sub	Gold	Grounding Indents	Male Pins Plug	50	Signal	UL94 V-0	5	Brass	Through Hole	250 VDC	Black	3	4-40 Board Side	-55 °C	125 °C	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDDH50POL2RM5C309	Thermoplastic Glass Filled	Solder		3 A	Stamped	D-Sub	Gold	Board Lock Grounding Indents	Male Pins Plug	50	Signal	UL94 V-0	5	Brass	Through Hole	250 VDC	Black	3	4-40 Board Side	-55 °C	125 °C	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDDH50POL2G	Thermoplastic Glass Filled	Solder	Flash	3 A	Stamped	D-Sub	Gold	Grounding Indents	Male Pins Plug	50	Signal	UL94 V-0	5	Brass	Through Hole	250 VDC	Black	3	4-40 Board Side	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.20
		10	$ 4.72
		25	$ 4.47
		40	$ 4.37
		80	$ 4.16
		240	$ 3.64
		440	$ 3.54
		960	$ 3.02
		2400	$ 2.81

Description

General part information

L717SDDH50 Series

50 Position D-Sub Plug, Male Pins Connector
