ActiveTE Connectivity AMP Connectors

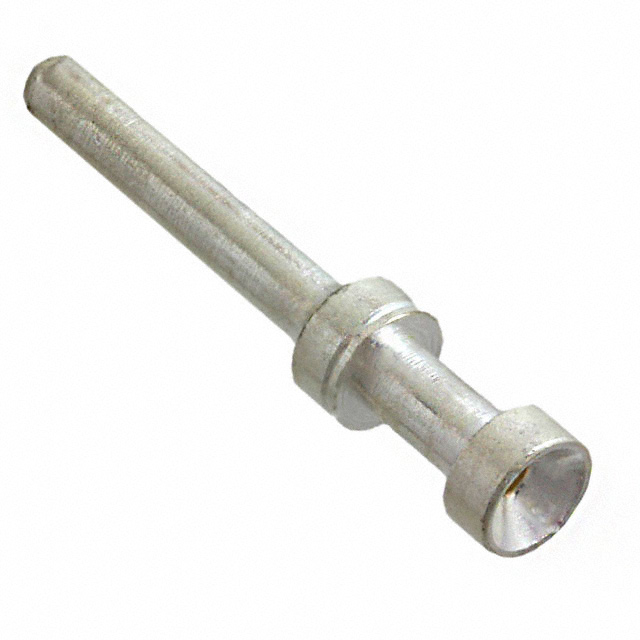

CONTACT H.D CRIMP PIN 17-18.5AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1105100-1
ActiveTE Connectivity AMP Connectors
CONTACT H.D CRIMP PIN 17-18.5AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1105100-1 | 1105100 Series |
|---|---|---|
| Contact Finish | Silver | Silver, Gold |
| Contact Finish Thickness | 2 µm | 0.75 - 2 µm |
| Contact Finish Thickness | 78.7 µin | 29.5 - 78.7 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Machined | Machined |
| Wire Gauge | - | 11 - 16 AWG |
| Wire Gauge [Max] | 18 AWG | 18 - 26 AWG |
| Wire Gauge [Min] | 17 AWG | 17 - 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5000 | $ 0.92 | |
1105100 Series
CONTACT H.D. CRIMP PIN 15.5AWG
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Type | Contact Finish | Wire Gauge | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-1105100-1 | 2 µm | 78.7 µin | Crimp | Pin | Machined | Silver | 16 AWG | ||
TE Connectivity AMP Connectors 4-1105100-1 | 2 µm | 78.7 µin | Crimp | Pin | Machined | Silver | 13.5 AWG | ||
TE Connectivity AMP Connectors 5-1105100-2 | 0.75 µm | 29.5 µin | Crimp | Pin | Machined | Gold | 11 AWG | ||
TE Connectivity AMP Connectors 6-1105100-1 | 2 µm | 78.7 µin | Crimp | Pin | Machined | Silver | 22 AWG | 26 AWG | |
TE Connectivity AMP Connectors 3-1105100-2 | 0.75 µm | 29.5 µin | Crimp | Pin | Machined | Gold | 16 AWG | ||
TE Connectivity AMP Connectors 2-1105100-2 | 0.75 µm | 29.5 µin | Crimp | Pin | Machined | Gold | 17 AWG | 18 AWG | |
TE Connectivity AMP Connectors 2-1105100-1 | 2 µm | 78.7 µin | Crimp | Pin | Machined | Silver | 17 AWG | 18 AWG | |
TE Connectivity AMP Connectors 5-1105100-1 | 2 µm | 78.7 µin | Crimp | Pin | Machined | Silver | 11 AWG |
Description
General part information
1105100 Series
Contact Crimp Pin 17-18.5 AWG Silver
