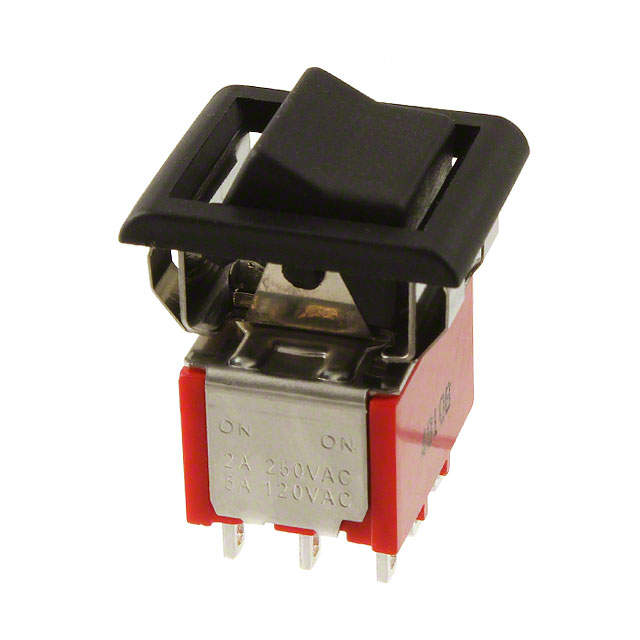

3003P1R6BLKM1QEBLK

Active

E-Switch

SWITCH ROCKER 3PDT 5A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER 3PDT 5A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 5.73

General part information

Rocker Switch 3PDT 5A (AC/DC) 120 V Panel Mount, Snap-In

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

SWITCH ROCKER 3PDT 0.4VA 20V

Part	Electrical Life	Circuit	Actuator Marking	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Type	Features	Mounting Type	Termination Style	Voltage Rating - DC	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)
E-Switch 3003P1R6BLKM1REBLK	40000 Cycles	3PDT	No Marking	Black	-30 ░C	85 °C	On-On	Concave (Standard V)	Epoxy Sealed Terminals	Panel Mount, Snap-In	Solder Lug	20 V	20 V	12.7 mm	15.24 mm	0.4 VA
E-Switch 3003P1R6WHTM3QEWHT	40000 Cycles	3PDT	No Marking	White	-30 ░C	85 °C	On-On	Concave (Standard V)	Epoxy Sealed Terminals	Panel Mount, Snap-In	Quick Connect - 0.062" (1.5mm)	28 V	120 V	12.7 mm	15.24 mm	5 A
E-Switch 3003P1R6BLKM1QEBLK	40000 Cycles	3PDT	No Marking	Black	-30 ░C	85 °C	On-On	Concave (Standard V)	Epoxy Sealed Terminals	Panel Mount, Snap-In	Solder Lug	28 V	120 V	12.7 mm	15.24 mm	5 A
