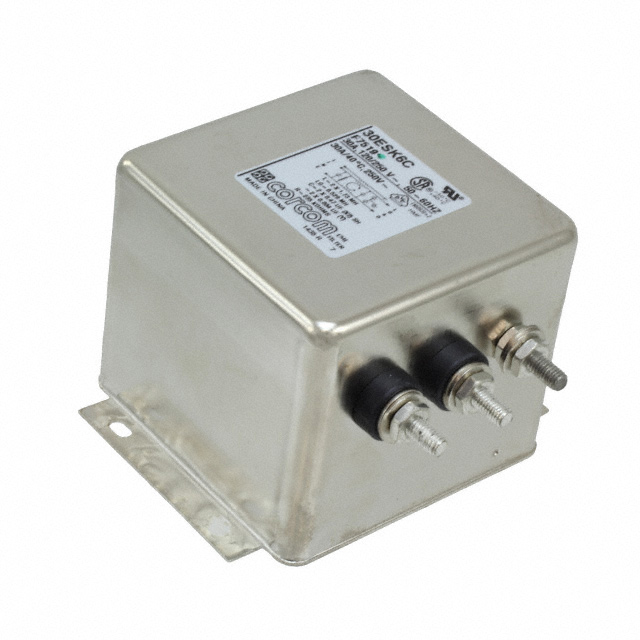

30ESK6C - 30ESK6C

30ESK6C

Active
TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 30A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCorcom EMI/RFI Filter Selector ChartDatasheet
30ESK6C - 30ESK6C

30ESK6C

Active
TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 30A CHASSIS

Deep-Dive with AI

DocumentsCorcom EMI/RFI Filter Selector ChartDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification30ESK6C
ApplicationsGeneral Purpose
Approval AgencyVDE, CSA, UR
ConfigurationSingle Stage
Current30 A
Filter TypeSingle Phase
Frequency - Operating [Max]60 Hz
Frequency - Operating [Min]50 Hz
Inductance1.73 mH
Mounting TypeChassis Mount
Operating Temperature [Max]40 °C
Operating Temperature [Min]-10 °C
Termination StyleThreaded Post (10-32)
Voltage - Rated AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 8$ 76.72

Description

General part information

30E Series

Single Phase EMC/EMI Line Filter 30 A 250V 50/60Hz Single Stage Threaded Post (10-32)
