R713FA1 Series

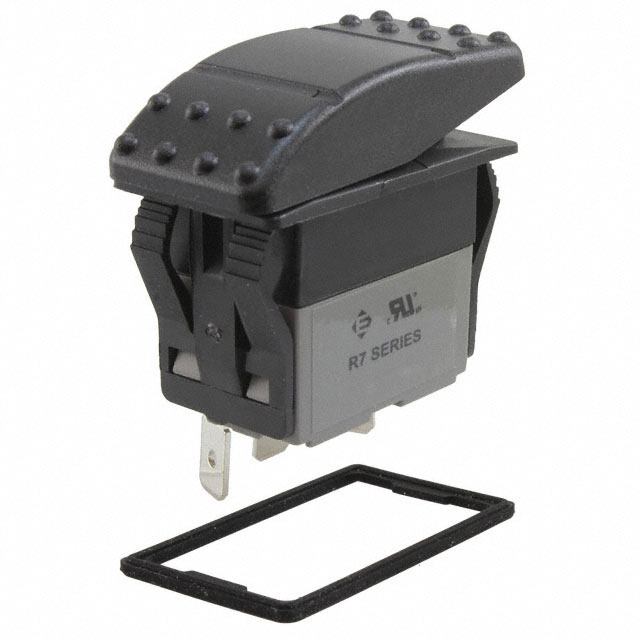

Rocker Switch SPDT 16A (DC) Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | R713FA1-SXXXNB4NNX |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) |
| Approval Agency | cULus |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating | 16 A |
| Electrical Life (Cycles) | 10000 Cycles |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | 0 °C |
| Panel Cutout Length | 37 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 21.1 mm |
| Quick Connect Size (0.250") | 0.25 in |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect |
| Voltage Rating - DC | 30 V |
