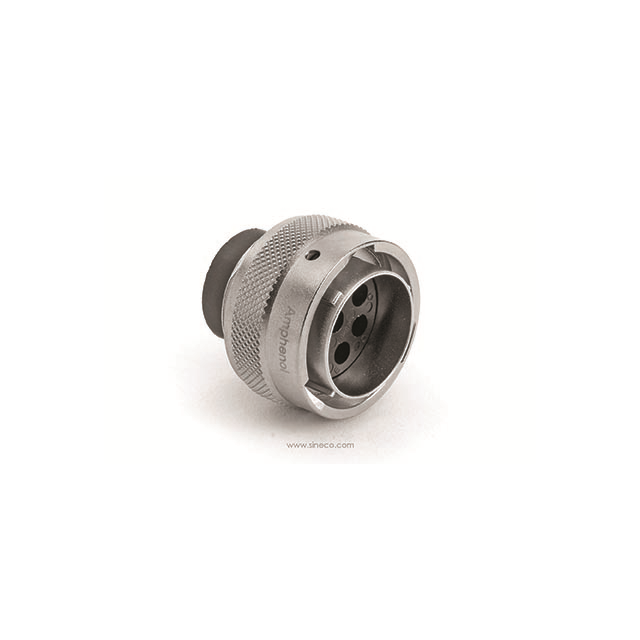

RT06188PNH03

Active

Amphenol Sine Systems Corp

PLUG, MALE WITH SILICONE SEAL, 2

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PLUG, MALE WITH SILICONE SEAL, 2

Technical Specifications

Parameters and characteristics for this part

Specification	RT06188PNH03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	2.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Includes	1 Gasket, 1 Connector, 1 O-Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	18-8
Shielding	Shielded
Type	For Male Pins

Part	Fastening Type	Contact Shape	Type	Number of Positions	Housing Color	Orientation	Includes	Contact Size	Ingress Protection	Note	Connector Type	Contact Type	Material Flammability Rating	Features	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Mounting Type	Insert Material	Shell Size - Insert	Shell Finish	Primary Material
Amphenol Sine Systems Corp RT06188PNH03	Bayonet Lock	Circular	For Male Pins	8	Silver	N	1 Connector 1 Gasket 1 O-Ring	2.5 mm	IP67 - Dust Tight Waterproof	Contacts Not Included	Plug Housing	Crimp	UL94 V-0	Coupling Nut	Shielded	125 °C	-40 °C	Zinc Alloy	Free Hanging (In-Line)	Thermoplastic	18-8	Nickel
Amphenol Sine Systems Corp RT06188PNHEC03	Bayonet Lock	Circular	For Male Pins	8	Silver	N		2.5 mm	IP67 - Dust Tight Waterproof	Contacts Not Included	Plug Housing	Crimp	UL94 V-0	Coupling Nut	Shielded	125 °C	-40 °C	Zinc Alloy	Free Hanging (In-Line)	Thermoplastic	18-8	Nickel	Metal
Amphenol Sine Systems Corp RT06188PNH	Bayonet Lock	Circular	For Male Pins	8	Silver	N		2.5 mm	IP67 - Dust Tight Waterproof	Contacts Not Included	Plug Housing	Crimp	UL94 V-0	Coupling Nut	Shielded	105 ░C	-40 °C	Zinc Alloy	Free Hanging (In-Line)	Thermoplastic	18-8	Nickel
Amphenol Sine Systems Corp RT06188SNH	Bayonet Lock	Circular	For Female Sockets	8	Silver	N		2.5 mm	IP67 - Dust Tight Waterproof	Contacts Not Included	Plug Housing	Crimp	UL94 V-0	Coupling Nut	Shielded	105 ░C	-40 °C	Zinc Alloy	Free Hanging (In-Line)	Thermoplastic	18-8	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 18.34

General part information

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
