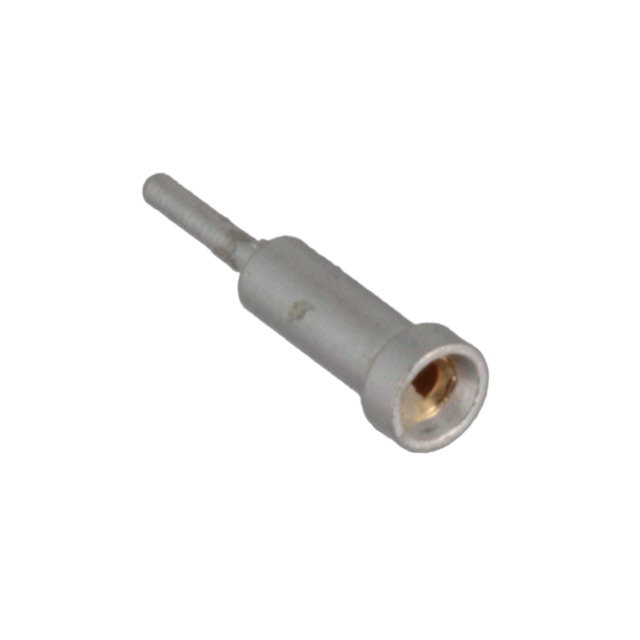

0255-0-15-80-30-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0255-0-15-80-30-27-04-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	0.297 in
Length - Overall [x]	7.54 mm
Mounting Hole Diameter [diameter]	0.022 in
Mounting Hole Diameter [diameter]	0.56 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	3.81 mm
Socket Depth	0.15 in
Tail Diameter [diameter]	0.02 in
Tail Diameter [diameter]	0.51 mm
Tail Type	Standard Tail
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Contact Finish	Termination	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Tail Diameter [diameter]	Tail Diameter [diameter]
Mill-Max Manufacturing Corp. 0255-0-15-80-30-27-04-0	0.76 Ám	30 Áin	Standard Tail	Gold	Solder	0.297 in	7.54 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.022 in	0.56 mm	1.83 mm	0.072 in	Beryllium Copper	-55 °C	125 °C	3.81 mm	0.15 in	0.02 in	0.51 mm
Mill-Max Manufacturing Corp. 0255-0-15-01-30-27-04-0	0.76 Ám	30 Áin	Standard Tail	Gold	Solder	0.297 in	7.54 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.022 in	0.56 mm	1.83 mm	0.072 in	Beryllium Copper	-55 °C	125 °C	3.81 mm	0.15 in	0.02 in	0.51 mm
Mill-Max Manufacturing Corp. 0255-0-15-01-30-14-04-0	0.25 Ám	10 Áin	Standard Tail	Gold	Solder	0.297 in	7.54 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.022 in	0.56 mm	1.83 mm	0.072 in	Beryllium Copper	-55 °C	125 °C	3.81 mm	0.15 in	0.02 in	0.51 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Solder
