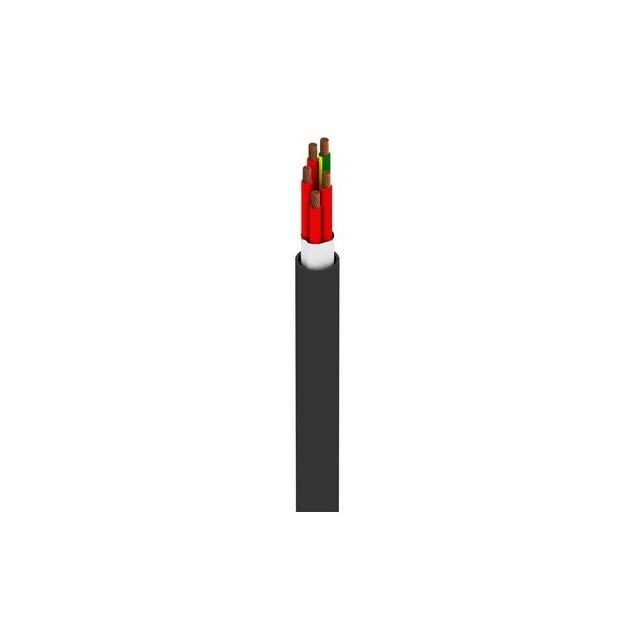

77805W 010100

Active

Belden Inc.

CABLE 5COND 18AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	77805W 010100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	105
Conductor Strand [custom]	38 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.355 "
Jacket (Insulation) Diameter [diameter]	9.02 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	5
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-5 °C
Ratings	UL Style 2587
Wire Gauge	18 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket Color	Cable Type	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Ratings	Conductor Insulation	Number of Conductors	Features
Belden Inc. 77805W 010100	90 °C	-5 °C	30.5 m	100 ft	105	38 AWG	0.355 "	9.02 mm	Poly-Vinyl Chloride (PVC)	Black	Multi-Conductor	18 AWG	0.889 mm	0.035 in	Copper Bare	UL Style 2587	Poly-Vinyl Chloride (PVC)	5	Oil Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 4.47

General part information

5 Conductor Multi-Conductor Cable Black 18 AWG 100.0' (30.5m)
