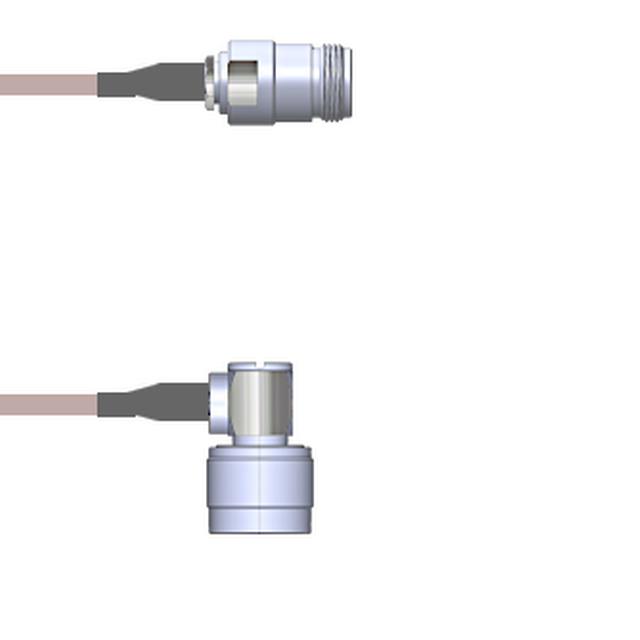

Q-1V02D000R012i
ActiveAmphenol Custom Cable
COAX CBL N-TYPE TO N-TYPE 12"
Deep-Dive with AI
Search across all available documentation for this part.
Q-1V02D000R012i
ActiveAmphenol Custom Cable
COAX CBL N-TYPE TO N-TYPE 12"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1V02D000R012i |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 DB |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 12 " |
| Length | 304.8 mm |
| Overall Impedance | 50 Ohms |
| Style | N-Type to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 191.25 | |
| 25 | $ 189.43 | |||
| 50 | $ 187.62 | |||
| 100 | $ 185.80 | |||
| 250 | $ 183.99 | |||
Description
General part information
Q-1V02D0 Series
Cable Assembly Coaxial N-Type to N-Type RG-316 DB 12.00" (304.80mm)
Documents
Technical documentation and resources
No documents available
