DC2196A-B

Active

Analog Devices

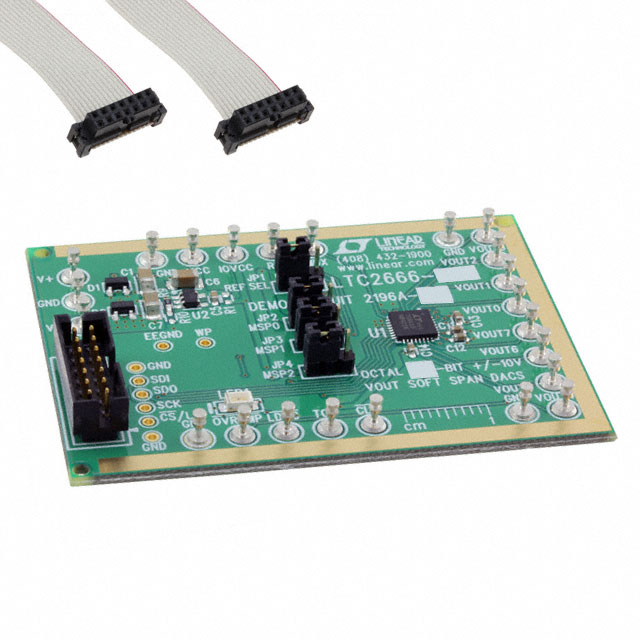

EVAL BOARD FOR LTC2666-12

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC2196A-B

Active

Analog Devices

EVAL BOARD FOR LTC2666-12

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC2196A-B

DAC Type	Voltage
Data Interface	SPI, Serial
Number of Bits	12 bits
Number of DAC's	8
Settling Time	15.5 µs
Supplied Contents	Board(s)
Utilized IC / Part	LTC2666-12

LTC2666 Series

Octal 16-Bit/12-Bit ±10V VOUTSoftSpan DACs with 10ppm/°C Max Reference

Part	Number of Bits	Number of D/A Converters	Settling Time	Output Type	Mounting Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Supplier Device Package	INL/DNL (LSB)	Data Interface	Voltage - Supply, Digital	Reference Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of DAC's	DAC Type	Utilized IC / Part	Supplied Contents
Analog Devices LTC2666IUH-16#TRPBF	16	8	20 µs	Voltage - Buffered	Surface Mount	-4.5 V	15.75 V	32-QFN (5x5)	0.2 LSB 2.2 LSB	SPI	5 V	External Internal	85 °C	-40 °C
Analog Devices DC2196A-B	12 bits		15.5 µs							Serial SPI					8	Voltage	LTC2666-12	Board(s)
Analog Devices LTC2666HUH-16#PBF	16	8	20 µs	Voltage - Buffered	Surface Mount	-4.5 V	15.75 V	32-QFN (5x5)	0.2 LSB 2.2 LSB	SPI	5 V	External Internal	125 °C	-40 °C
Analog Devices LTC2666IUH-12#PBF	12 bits	8	15.5 µs	Voltage - Buffered	Surface Mount	-4.5 V	15.75 V	32-QFN (5x5)	0.05 LSB 0.2 LSB	SPI	5 V	External Internal	85 °C	-40 °C
Analog Devices LTC2666HUH-12#TRPBF	12 bits	8	15.5 µs	Voltage - Buffered	Surface Mount	-4.5 V	15.75 V	32-QFN (5x5)	0.05 LSB 0.2 LSB	SPI	5 V	External Internal	125 °C	-40 °C
Analog Devices LTC2666HUH-12#PBF	12 bits	8	15.5 µs	Voltage - Buffered	Surface Mount	-4.5 V	15.75 V	32-QFN (5x5)	0.05 LSB 0.2 LSB	SPI	5 V	External Internal	125 °C	-40 °C
Analog Devices LTC2666CUH-16#PBF	16	8	20 µs	Voltage - Buffered	Surface Mount	-4.5 V	15.75 V	32-QFN (5x5)	0.2 LSB 2.2 LSB	SPI	5 V	External Internal	70 °C	0 °C
Analog Devices LTC2666CUH-16#TRPBF	16	8	20 µs	Voltage - Buffered	Surface Mount	-4.5 V	15.75 V	32-QFN (5x5)	0.2 LSB 2.2 LSB	SPI	5 V	External Internal	70 °C	0 °C
Analog Devices LTC2666IUH-12#TRPBF	12 bits	8	15.5 µs	Voltage - Buffered	Surface Mount	-4.5 V	15.75 V	32-QFN (5x5)	0.05 LSB 0.2 LSB	SPI	5 V	External Internal	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 88.91

Description

General part information

LTC2666 Series

The LTC2666 is a family of 8-channel, 16-/12-bit ±10V digital-to-analog converters with integrated precision references. They are guaranteed monotonic and have built-in rail-to-rail output buffers. These SoftSpan™DACs offer five output ranges up to ±10V. The range of each channel is independently programmable, or the part can be hardware-configured for operation in a fixed range.The integrated 2.5V reference is buffered separately to each channel; an external reference can be used for additional range options. The LTC2666 also includes A/B toggle capability via a dedicated pin or software toggle command.The SPI/Microwire-compatible 3-wire serial interface operates on logic levels as low as 1.71V at clock rates up to 50MHz.ApplicationsOptical NetworkingInstrumentationData AcquisitionAutomatic Test EquipmentProcess Control and Industrial Automation
