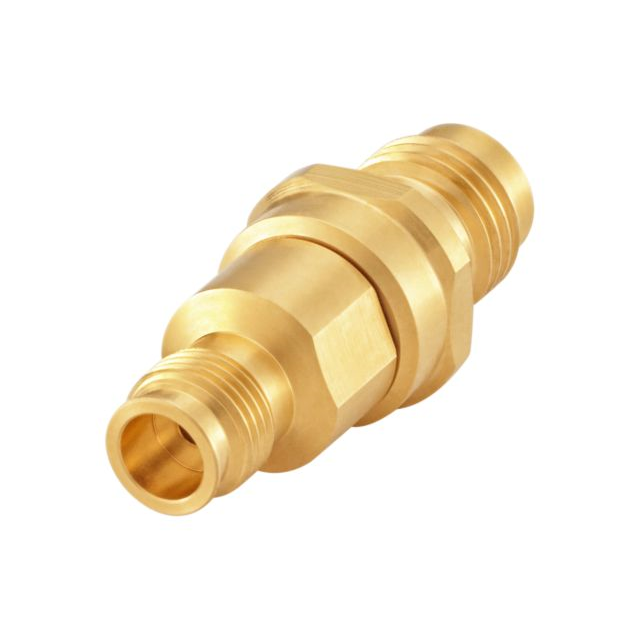

P9K108-K00D3

Active

Rosenberger

CONN ADAPT F-F RPC-1.35/RPC-1.85

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT F-F RPC-1.35/RPC-1.85

Technical Specifications

Parameters and characteristics for this part

CONN ADAPT F-F RPC-1.35/RPC-1.85

Part	Frequency - Max [Max]	Convert To (Adapter End)	Body Material	Body Finish	Style	Operating Temperature [Max]	Operating Temperature [Min]	Conversion Type	Dielectric Material	Center Gender	Mounting Type	Center Contact Plating	Center Contact Material	Adapter Series	Adapter Type	Convert From (Adapter End)
Rosenberger P9K108-K00D3	70 GHz	1.85mm Jack, Female Socket	Beryllium Copper	Gold	Straight	85 °C	-40 °C	Between Series	Polyetheretherketone (PEEK)	Female to Female	Free Hanging (In-Line)	Gold	Beryllium Copper	RPC-1.35, RPC-1.85	Jack to Jack	1.35mm Jack, Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 1321.37

General part information

Adapter Coaxial Connector 1.35mm Jack, Female Socket To 1.85mm Jack, Female Socket
