H3AAS-2036M

Active

Assmann WSW Components

IDC CBL - HHSC20S/AE20M/HHSC20S

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSC20S/AE20M/HHSC20S

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Number of Positions	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Color	Shielding	Contact Finish	Connector Type	Number of Rows	Pitch - Connector	Pitch - Connector	Length	Length	Length
Assmann WSW Components H3AAS-2018M	IDC	20	0.05 "	1.27 mm	457.2 mm	1.5 ft	Multiple Ribbon	Unshielded	Tin	Socket to Socket	2	0.1 in	2.54 mm
Assmann WSW Components H3AAS-2036M	IDC	20	0.05 "	1.27 mm	914.4 mm	3 ft	Multiple Ribbon	Unshielded	Tin	Socket to Socket	2	0.1 in	2.54 mm
Assmann WSW Components H3AAS-2006M	IDC	20	0.05 "	1.27 mm			Multiple Ribbon	Unshielded	Tin	Socket to Socket	2	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
Assmann WSW Components H3AAS-2018G	IDC	20	0.05 "	1.27 mm	457.2 mm	1.5 ft		Unshielded	Tin	Socket to Socket	2	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

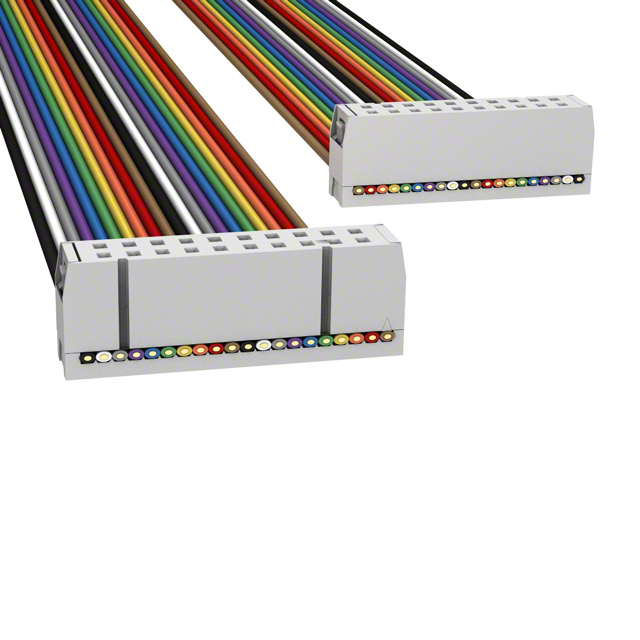

20 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
