HDD-108-F
ActiveTE Connectivity AMP Connectors

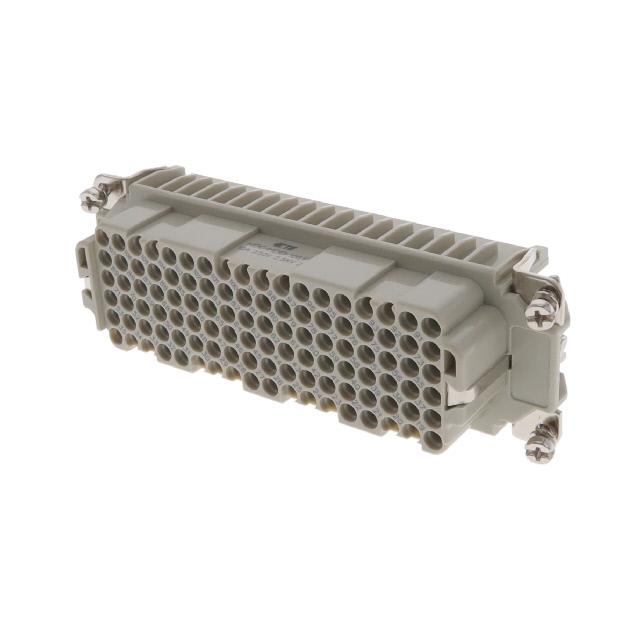

INSERT FML 108POS+1GND HDD-108-F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDD-108-F
ActiveTE Connectivity AMP Connectors
INSERT FML 108POS+1GND HDD-108-F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HDD-108-F | HDD Series |
|---|---|---|
| Connector Type | Insert without Contacts | Insert without Contacts |
| Contact Type | DDF, CDF | DDM, CDM, DDF, CDF |
| Current Rating (Amps) | 10 A | 10 A |
| Gender | Female | Male, Female |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | EN45545 | EN45545 |
| Number of Positions | 108+Ground | 108+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H24B | H24B |
| Termination Style | Crimp | Crimp |
| Voltage Rating | 250 VDC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.58 | |
| 10 | $ 20.15 | |||
| 25 | $ 19.62 | |||
| 50 | $ 18.65 | |||
| 100 | $ 16.83 | |||
| 250 | $ 16.72 | |||
| 500 | $ 14.58 | |||
HDD Series
INSRT 108P+1GD HDD-108-M 109-216
| Part | Material Flammability Rating | Voltage Rating | Size | Connector Type | Termination Style | Current Rating (Amps) | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Type | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HDD-108-M 109-216 | EN45545 | 250 VDC | H24B | Insert without Contacts | Crimp | 10 A | Polycarbonate (PC) | 125 °C | -40 °C | 108+Ground | CDM, DDM | Male |
TE Connectivity AMP Connectors HDD-108-M | EN45545 | 250 VDC | H24B | Insert without Contacts | Crimp | 10 A | Polycarbonate (PC) | 125 °C | -40 °C | 108+Ground | CDM, DDM | Male |
TE Connectivity AMP Connectors HDD-108-F | EN45545 | 250 VDC | H24B | Insert without Contacts | Crimp | 10 A | Polycarbonate (PC) | 125 °C | -40 °C | 108+Ground | CDF, DDF | Female |
Description
General part information
HDD Series
Female Insert without Contacts 108+Ground Position Crimp
