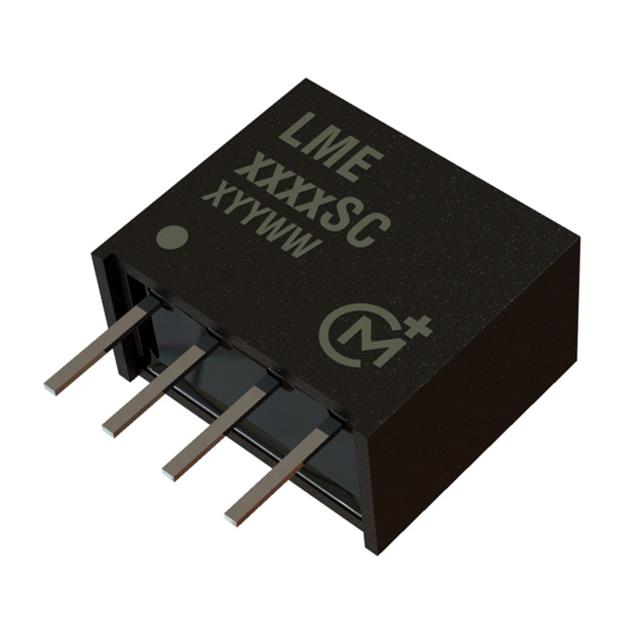

LME0505SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 250MW

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 250MW

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 15V 250MW

Part	Operating Temperature [Max]	Type	Voltage - Input (Min) [Min]	Package / Case	Package / Case	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Applications	Features	Efficiency	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Isolation
Murata Power Solutions Inc. LME0515DC	70 °C	Isolated Module	4.5 V	7-DIP Module	4 Lead	250 mW	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	1	ITE (Commercial)	SCP	75 %	15 V	16 mA	5.5 V	Through Hole	1000 V
Murata Power Solutions Inc. LME0509SC	70 °C	Isolated Module	4.5 V	4-SIP Module		250 mW	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	1	ITE (Commercial)	SCP	75 %	9 V	28 mA	5.5 V	Through Hole	1000 V
Murata Power Solutions Inc. LME0505SC	70 °C	Isolated Module	4.5 V	4-SIP Module		250 mW							1	ITE (Commercial)	SCP	70 %	5 V	50 mA	5.5 V	Through Hole	1000 V
Murata Power Solutions Inc. LME0512DC	70 °C	Isolated Module	4.5 V	7-DIP Module	4 Lead	250 mW	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	1	ITE (Commercial)	SCP	75 %	12 V	21 mA	5.5 V	Through Hole	1000 V
Murata Power Solutions Inc. LME0509DC	70 °C	Isolated Module	4.5 V	7-DIP Module	4 Lead	250 mW	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	1	ITE (Commercial)	SCP	75 %	9 V	28 mA	5.5 V	Through Hole	1000 V
Murata Power Solutions Inc. LME0512SC	70 °C	Isolated Module	4.5 V	4-SIP Module		250 mW							1	ITE (Commercial)	SCP	75 %	12 V	21 mA	5.5 V	Through Hole	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.14

General part information

Isolated Module DC DC Converter 1 Output 5V 50mA 4.5V - 5.5V Input
