Technical Specifications
Parameters and characteristics for this part
| Specification | FDA803Q-V0Y |
|---|---|
| Grade | Automotive |
| Max Output Power x Channels @ Load | 25 W, 31 W |
| Mounting Type | Wettable Flank, Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1-Channel (Mono) |
| Package / Case | 48-TFQFN Exposed Pad |
| Qualification | AEC-Q100 |

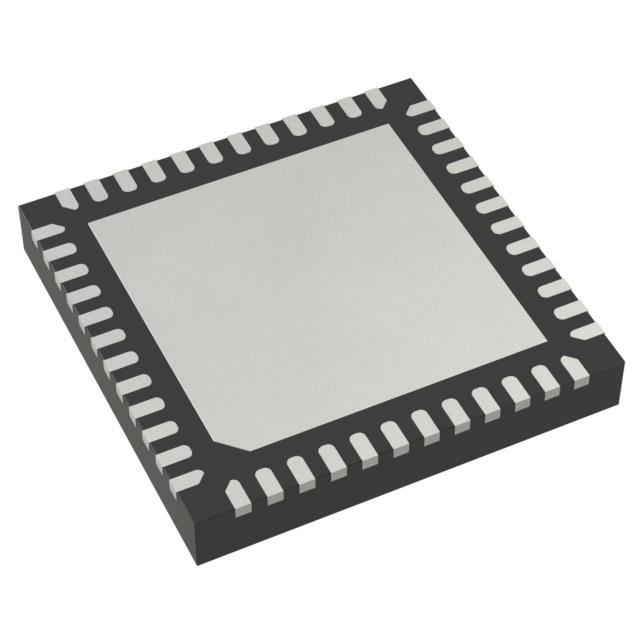

| Supplier Device Package | 48-VFQFPN (7x7) |
| Type | Class D |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FDA803Q Series
The FDA803Q is a single bridge class D amplifier, designed in the most advanced BCD technology, intended for any automotive audio application (car radio, telematics and e-call, noise and tone generators, etc).
The FDA803Q integrates a high performance D/A converter together with powerful MOSFET outputs in class D, so it is very compact and powerful, moreover it reaches outstanding efficiency performances (90%).
It has a very wide operating range: it can be operated both with standard car battery levels (5.5-18 V operating, compatible to load dump pulse) and with external step-down generated voltages or emergency battery (since it is compatible to minimum 3.3 V operative).
