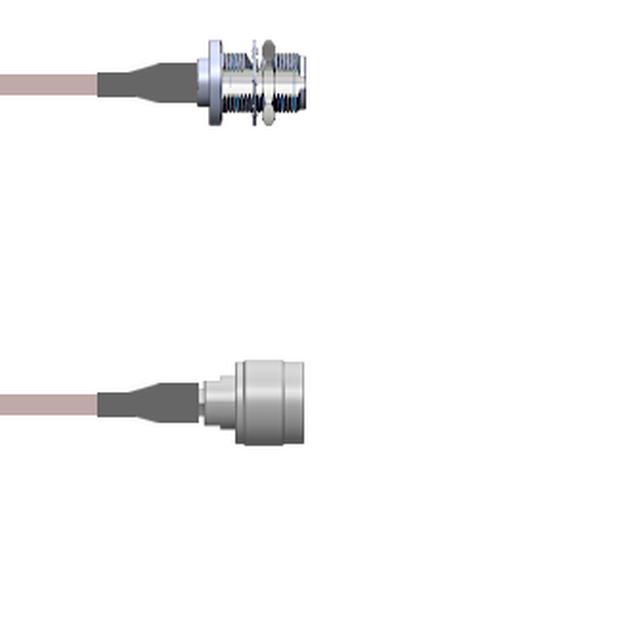

Q-2102M000R012i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2102M000R012i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2102M000R012i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2102M0 Series

Part	2nd Connector Mounting Type	Overall Impedance	1st Contact Gender	Frequency - Max [Max]	1st Connector Mounting Type	Style	Features	Color	2nd Connector	Length	Length	2nd Contact Gender	1st Connector Mounting Feature	1st Connector	Cable Type	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-2102M000R.75M	Free Hanging (In-Line)	50 Ohms	Female	11 GHz	Panel Mount	N-Type to N-Type	Shielded	Copper	N-Type Plug	29.53 "	750 mm	Male	Bulkhead - Front Side Nut	N-Type Jack	RG-316 DB
Amphenol Custom Cable Q-2102M000R018i	Free Hanging (In-Line)	50 Ohms	Female	11 GHz	Panel Mount	N-Type to N-Type	Shielded	Copper	N-Type Plug			Male	Bulkhead - Front Side Nut	N-Type Jack	RG-316 DB	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2102M000R072i	Free Hanging (In-Line)	50 Ohms	Female	11 GHz	Panel Mount	N-Type to N-Type	Shielded	Copper	N-Type Plug	72 in	1.8 m	Male	Bulkhead - Front Side Nut	N-Type Jack	RG-316 DB			6 ft
Amphenol Custom Cable Q-2102M000R003i	Free Hanging (In-Line)	50 Ohms	Female	11 GHz	Panel Mount	N-Type to N-Type	Shielded	Copper	N-Type Plug	3 in	76.2 mm	Male	Bulkhead - Front Side Nut	N-Type Jack	RG-316 DB
Amphenol Custom Cable Q-2102M000R012i	Free Hanging (In-Line)	50 Ohms	Female	11 GHz	Panel Mount	N-Type to N-Type	Shielded	Copper	N-Type Plug	12 "	304.8 mm	Male	Bulkhead - Front Side Nut	N-Type Jack	RG-316 DB
Amphenol Custom Cable Q-2102M000R084i	Free Hanging (In-Line)	50 Ohms	Female	11 GHz	Panel Mount	N-Type to N-Type	Shielded	Copper	N-Type Plug	84 in	2.1 m	Male	Bulkhead - Front Side Nut	N-Type Jack	RG-316 DB			7 ft
Amphenol Custom Cable Q-2102M000R002M	Free Hanging (In-Line)	50 Ohms	Female	11 GHz	Panel Mount	N-Type to N-Type	Shielded	Copper	N-Type Plug	78.7 in	2 m	Male	Bulkhead - Front Side Nut	N-Type Jack	RG-316 DB			6.6 ft
Amphenol Custom Cable Q-2102M000R024i	Free Hanging (In-Line)	50 Ohms	Female	11 GHz	Panel Mount	N-Type to N-Type	Shielded	Copper	N-Type Plug	24 "	609.6 mm	Male	Bulkhead - Front Side Nut	N-Type Jack	RG-316 DB
Amphenol Custom Cable Q-2102M000R0.5M	Free Hanging (In-Line)	50 Ohms	Female	11 GHz	Panel Mount	N-Type to N-Type	Shielded	Copper	N-Type Plug	19.69 "	50 cm	Male	Bulkhead - Front Side Nut	N-Type Jack	RG-316 DB
Amphenol Custom Cable Q-2102M000R060i	Free Hanging (In-Line)	50 Ohms	Female	11 GHz	Panel Mount	N-Type to N-Type	Shielded	Copper	N-Type Plug	5 '	1.5 m	Male	Bulkhead - Front Side Nut	N-Type Jack	RG-316 DB			5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 96.29
		25	$ 94.42
		50	$ 92.55
		100	$ 90.68
		250	$ 88.81

Description

General part information

Q-2102M0 Series

Cable Assembly Coaxial N-Type to N-Type RG-316 DB 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
