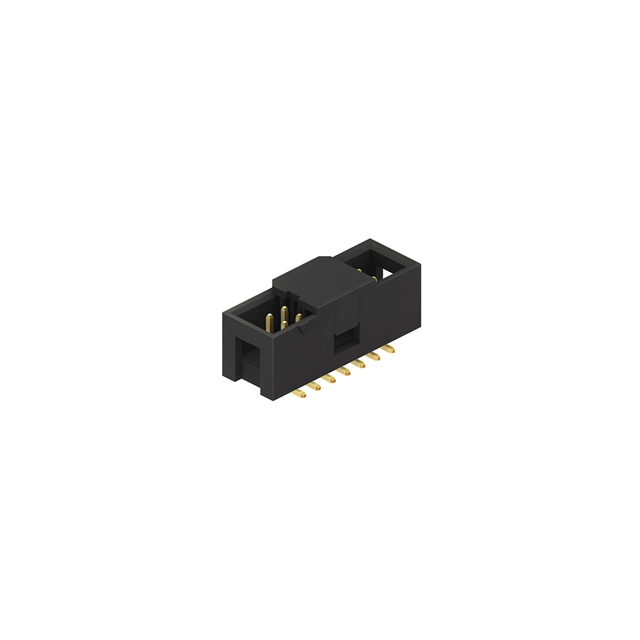

3020-26-0300-00-TR
ActiveCnC Tech, LLC
CONN HEADER SMD 26POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
3020-26-0300-00-TR
ActiveCnC Tech, LLC
CONN HEADER SMD 26POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3020-26-0300-00-TR |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 9 mm |
| Insulation Height | 0.354 in |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
3020-26 Series
| Part | Contact Shape | Number of Rows | Termination | Number of Positions | Contact Finish Thickness - Post | Contact Type | Voltage Rating | Fastening Type | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Shrouding | Style | Contact Finish Thickness - Mating | Connector Type | Mounting Type | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Positions Loaded | Features | Contact Length - Post | Contact Length - Post | Insulation Material | Insulation Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Current Rating (Amps) | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | Square | 2 | Solder | 26 | Flash | Male Pin | 250 VAC | Push-Pull | Gold | 0.346 in | 8.8 mm | Shrouded - 4 Wall | Board to Cable/Wire | Flash | Header | Through Hole Right Angle | Gold | 0.1 in | 2.54 mm | UL94 V-0 | All | Keying Slot | 0.118 in | 3 mm | Nylon 9T Polyamide (PA9T) | Black | Brass | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 3 A | ||
CnC Tech, LLC | Square | 2 | Solder | 26 | Flash | Male Pin | Push-Pull | Gold | Shrouded - 4 Wall | Board to Cable/Wire | Flash | Header | Surface Mount | Gold | 0.1 in | 2.54 mm | UL94 V-0 | All | Keying Slot | Nylon 9T Polyamide (PA9T) | Black | Brass | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 3 A | 9 mm | 0.354 in | |||||
CnC Tech, LLC | Square | 2 | Solder | 26 | Flash | Male Pin | Push-Pull | Gold | Shrouded - 4 Wall | Board to Cable/Wire | Flash | Header | Surface Mount | Gold | 0.1 in | 2.54 mm | UL94 V-0 | All | Keying Slot Pick and Place | Nylon 9T Polyamide (PA9T) | Black | Copper Alloy | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 3 A | 9 mm | 0.354 in | |||||
CnC Tech, LLC | Square | 2 | Solder | 26 | Flash | Male Pin | 250 VAC | Push-Pull | Gold | Shrouded - 4 Wall | Board to Cable/Wire | Flash | Header | Through Hole | Gold | 0.1 in | 2.54 mm | UL94 V-0 | All | Keying Slot | 0.118 in | 3 mm | Nylon 9T Polyamide (PA9T) | Black | Brass | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 3 A | 9 mm | 0.354 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.75 | |
| 10 | $ 1.52 | |||
| 100 | $ 1.36 | |||
| Tape & Reel (TR) | 300 | $ 1.30 | ||
| 600 | $ 1.20 | |||
| 900 | $ 1.17 | |||
| 1500 | $ 1.00 | |||
| 3000 | $ 0.96 | |||
| 7500 | $ 0.91 | |||
Description
General part information
3020-26 Series
Connector Header Surface Mount 26 position 0.100" (2.54mm)
