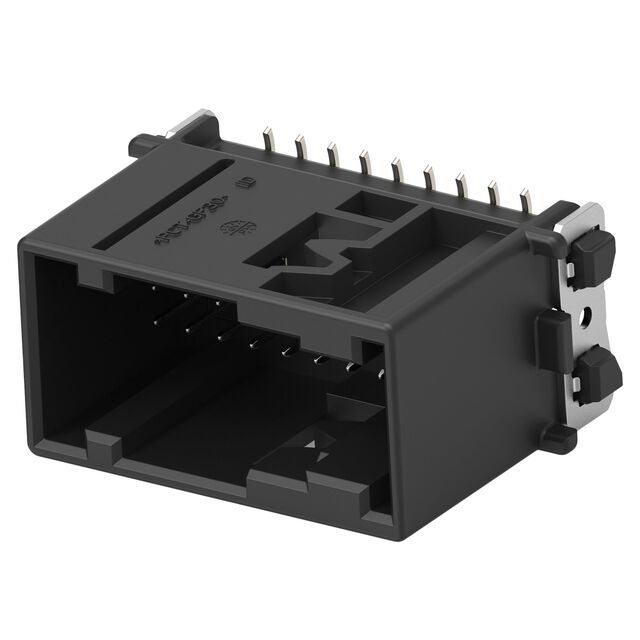

1438543-1
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER SMD 18POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1438543-1
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER SMD 18POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1438543-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 31.5 µin |
| Contact Finish Thickness - Mating | 0.8 µm |
| Contact Finish Thickness - Post | 31.5 µin |
| Contact Finish Thickness - Post | 0.8 µm |
| Contact Length - Mating | 7.45 mm |
| Contact Length - Mating | 0.293 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 23.95 mm |
| Insulation Height | 0.943 in |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Mounting Type | Surface Mount |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.64 | |
| 10 | $ 4.06 | |||
| Digi-Reel® | 1 | $ 4.64 | ||
| 10 | $ 4.06 | |||
| Tape & Reel (TR) | 34 | $ 3.96 | ||
| 68 | $ 3.87 | |||
| 102 | $ 3.64 | |||
| 340 | $ 3.62 | |||
| 850 | $ 3.38 | |||
| 1700 | $ 3.02 | |||
| 3400 | $ 2.81 | |||
Description
General part information
1438543 Series
Connector Header Surface Mount 18 position 0.100" (2.54mm)
