342-022-540-108
ActiveEDAC Inc.

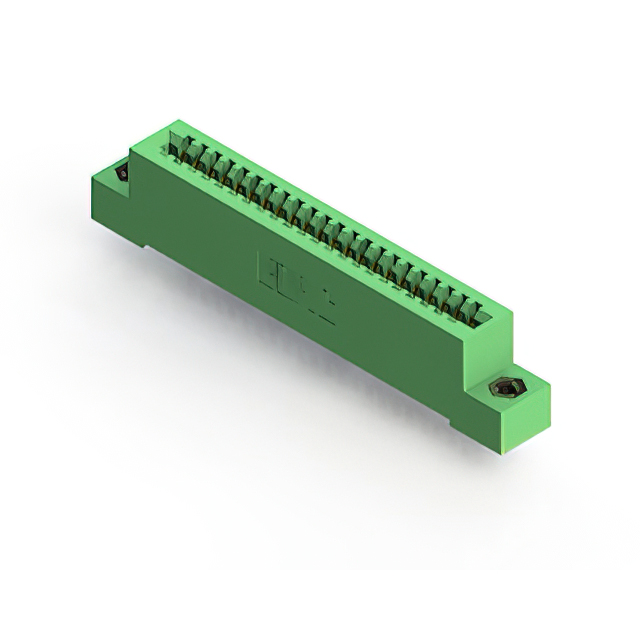

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-022-540-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-022-540-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
342-022 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Card Type | Gender | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Termination Rows | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Positions | Read Out | Pitch [x] | Pitch [x] | Contact Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Material - Insulation | Mounting Type | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Gold | 11 | 22 positions | Dual | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Through Hole | Green | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Gold | 22 | 22 positions | Single | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | Polyester Thermoplastic | Through Hole | Green | 3.25 mm | 0.128 " |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Gold | 11 | 22 positions | Dual | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | Polyester Thermoplastic | Through Hole | Green | 3.25 mm | 0.128 " |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Gold | 22 | 22 positions | Single | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Through Hole | Green | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Gold | 11 | 22 positions | Dual | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Through Hole | Green | 3.25 mm | 0.128 " |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Gold | 11 | 22 positions | Dual | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Through Hole | Green | 3.25 mm | 0.128 " |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Gold | 22 | 22 positions | Single | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Through Hole | Green | 3.96 mm | 0.156 in |
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Gold | 22 | 22 positions | Single | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Through Hole | Green | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Gold | 11 | 22 positions | Dual | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Through Hole Right Angle | Green | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Female | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Gold | 22 | 22 positions | Single | 2.54 mm | 0.1 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | Polyester Thermoplastic | Through Hole | Green | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-022 Series
22 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
