RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

R141625000

Active

Radiall USA, Inc.

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R141625000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Eyelet
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

R14162 Series

Part	Voltage Rating	Mating Cycles	Body Finish	Impedance	Housing Color	Frequency - Max [Max]	Center Contact Plating	Connector Type	Center Contact Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Contact Termination	Dielectric Material	Shield Termination	Fastening Type	Connector Style	Number of Ports
Radiall USA, Inc. R141625000	500 V	500	Nickel	50 Ohms	Silver	4 GHz	Gold	Female Socket Jack	Beryllium Copper	Bulkhead - Rear Side Nut	-65 ░C	165 °C	Brass	Solder Eyelet	Polytetrafluoroethylene (PTFE)	Solder	Bayonet Lock	BNC	1
Radiall USA, Inc. R141625000W	500 V	500	Nickel	50 Ohms	Silver	4 GHz	Gold	Female Socket Jack	Beryllium Copper	Bulkhead - Rear Side Nut	-65 ░C	165 °C	Brass	Solder Eyelet	Polytetrafluoroethylene (PTFE)	Solder	Bayonet Lock	BNC	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 76.23
Newark	Each	1	$ 150.92
		10	$ 142.25
		25	$ 134.73
		50	$ 128.95
		100	$ 120.85
		250	$ 108.71

Description

General part information

R14162 Series

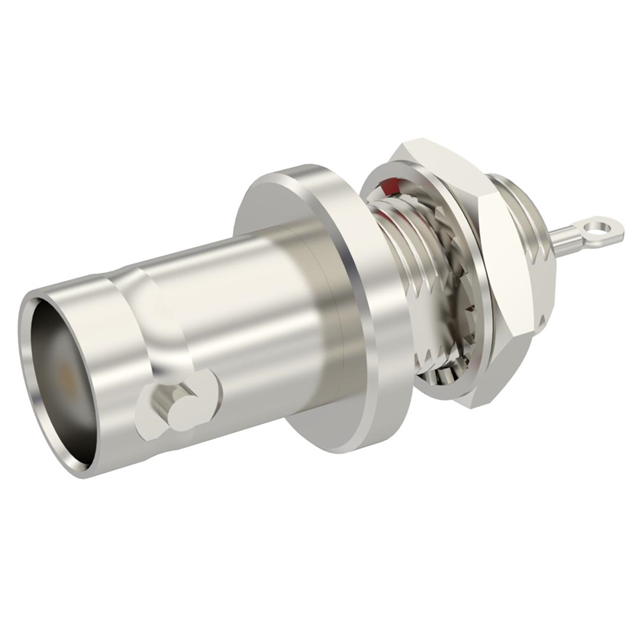

The R141625000 is a bulkhead hermetical front-mounting panel seal BNC Jack Receptacle made of nickel-plated brass body with gold over nickel plated beryllium copper centre contact and a PTFE insulator.
