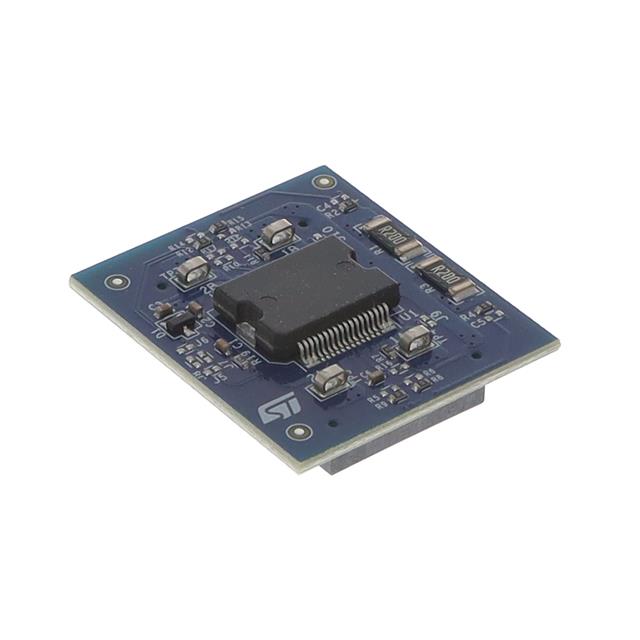

EVL6208-PLUG
ActiveEVALUATION KIT ENVIRONMENT FOR L62XX FAMILY OF DUAL BRUSH DC AND STEPPER MOTOR DRIVERS BASED ON STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVL6208-PLUG |
|---|---|
| Embedded | False |
| Function | Motor Controller/Driver |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | L6208 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVL6208-PLUG Series
The EVL62XX-MAIN is an expansion board that can host small EVL62XX-PLUG plug-in boards for quick and easy evaluation of brush DC and stepper motor drivers of the L62xx family.
These boards provide an affordable and easy-to-use solution to drive dual brush DC and bipolar stepper motors in association with the evaluation software STSPIN Studio.
The EVL62XX-MAIN is compatible with the Arduino UNO R3 connector.
