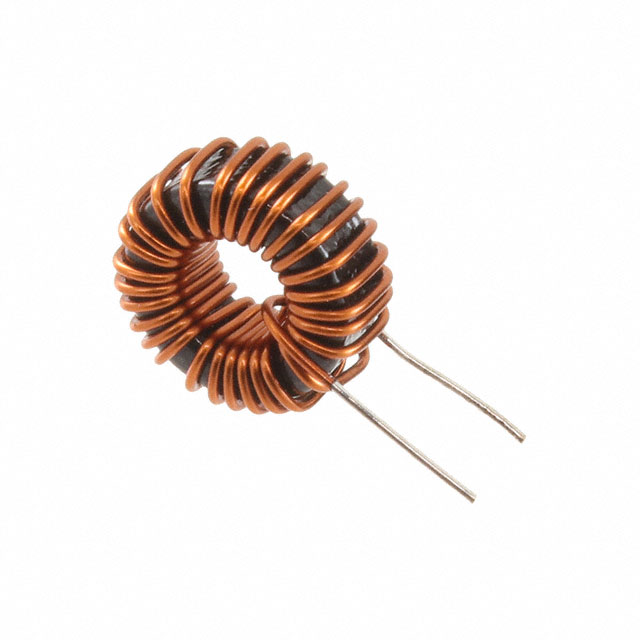

SHBC24W-2R1B0065V - SHBC8S-0R6A0024V

SHBC24W-2R1B0065V

Active
KEMET

TOROIDAL INDUCTOR, SHBC SERIES, 65 µH, 30 A, 0.0062 OHM, ± 20%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetSHBC24W-2R1B0065V Spec+3
SHBC24W-2R1B0065V - SHBC8S-0R6A0024V

SHBC24W-2R1B0065V

Active
KEMET

TOROIDAL INDUCTOR, SHBC SERIES, 65 µH, 30 A, 0.0062 OHM, ± 20%

Deep-Dive with AI

DocumentsDatasheetSHBC24W-2R1B0065V Spec+3

Technical Specifications

Parameters and characteristics for this part

SpecificationSHBC24W-2R1B0065V
Current Rating (Amps)30 A
DC Resistance (DCR) [Max]6.2 mOhm
Height - Seated (Max) [Max] [z]57.6 mm
Height - Seated (Max) [Max] [z]2.268 in
Inductance65 µH
Inductance Frequency - Test100 kHz
Material - CoreAlloy Powder
Mounting TypeThrough Hole
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseRadial, Vertical (Open)
ShieldingUnshielded
Size / Dimension57.6 mm
Size / Dimension [diameter]2.268 in
Supplier Device PackageRadial
Tolerance20 %
TypeToroidal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 18.80
18$ 15.91
27$ 15.43
54$ 14.46
108$ 13.02
252$ 12.53
504$ 12.05
NewarkEach 1$ 19.56
10$ 15.98
25$ 15.75
50$ 15.51
100$ 14.58
250$ 13.54

Description

General part information

SHBC24W Series

65 µH Unshielded Toroidal Inductor 30 A 6.2mOhm Max Radial, Vertical (Open)
