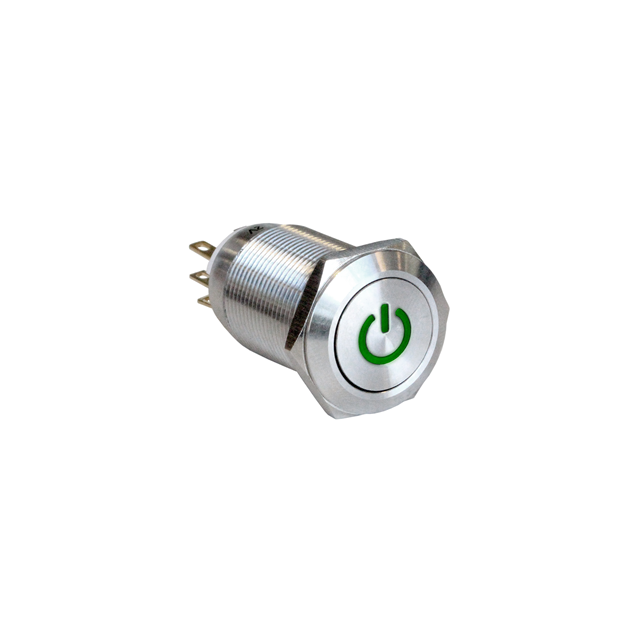

MPI005PTELSGN12

Active

BULGIN LIMITED

SWITCH: VANDAL RESISTANT; POS: 2; SPST NC + NO; 3A/250VAC; IP65

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPI005PTELSGN12

Active

BULGIN LIMITED

SWITCH: VANDAL RESISTANT; POS: 2; SPST NC + NO; 3A/250VAC; IP65

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPI005PTELSGN12

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	12 VAC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

MPI005 Series

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Ingress Protection	Actuator Marking	Current Rating (Amps)	Illumination Type, Color	Voltage Rating - AC	Electrical Life	Circuit	Switch Function	Color - Actuator/Cap	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Mechanical Life	Type	Mounting Type	Illumination Voltage (Nominal)
BULGIN LIMITED MPI005R28LAWH12	Button Flush Round	55 °C	-25 °C	Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	No Marking	5 A	LED White	125 V	50000 Cycles	DPST-NO/NC	Off-On On-Off	Silver	24 V	19.2 mm	1000000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VAC
BULGIN LIMITED MPI005PTELSAM12	Button Flush Round	55 °C	-25 °C	Screw Terminal	IP65 - Dust Tight Water Resistant	No Marking	5 A	Amber LED	125 V	50000 Cycles	DPST-NO/NC	Off-On On-Off	Silver	24 V	19.2 mm	1000000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VAC
BULGIN LIMITED MPI005O28LSAM12	Button Flush Round	55 °C	-25 °C	Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	No Marking	5 A	Amber LED	125 V	50000 Cycles	DPST-NO/NC	Off-On On-Off	Silver	24 V	19.2 mm	1000000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VAC
BULGIN LIMITED MPI005PTELSGN12	Button Flush Round	55 °C	-25 °C	Screw Terminal	IP65 - Dust Tight Water Resistant	No Marking	5 A	Green LED	125 V	50000 Cycles	DPST-NO/NC	Off-On On-Off	Silver	24 V	19.2 mm	1000000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VAC
BULGIN LIMITED MPI005R28LSRD12	Button Flush Round	55 °C	-25 °C	Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	No Marking	5 A	LED Red	125 V	50000 Cycles	DPST-NO/NC	Off-On On-Off	Silver	24 V	19.2 mm	1000000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VAC
BULGIN LIMITED MPI005P28LSWH12	Button Flush Round	55 °C	-25 °C	Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	No Marking	5 A	LED White	125 V	50000 Cycles	DPST-NO/NC	Off-On On-Off	Silver	24 V	19.2 mm	1000000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VAC
BULGIN LIMITED MPI005D28LSAM12	Button Flush Round	55 °C	-25 °C	Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	No Marking	5 A	Amber LED	125 V	50000 Cycles	DPST-NO/NC	Off-On On-Off	Silver	24 V	19.2 mm	1000000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VAC
BULGIN LIMITED MPI005PTELAAM12	Button Flush Round	55 °C	-25 °C	Screw Terminal	IP65 - Dust Tight Water Resistant	No Marking	5 A	Amber LED	125 V	50000 Cycles	DPST-NO/NC	Off-On On-Off	Silver	24 V	19.2 mm	1000000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VAC
BULGIN LIMITED MPI005RTELSWH12	Button Flush Round	55 °C	-25 °C	Screw Terminal	IP65 - Dust Tight Water Resistant	No Marking	5 A	LED White	125 V	50000 Cycles	DPST-NO/NC	Off-On On-Off	Silver	24 V	19.2 mm	1000000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VAC
BULGIN LIMITED MPI005OTELSRD12	Button Flush Round	55 °C	-25 °C	Screw Terminal	IP65 - Dust Tight Water Resistant	No Marking	5 A	LED Red	125 V	50000 Cycles	DPST-NO/NC	Off-On On-Off	Silver	24 V	19.2 mm	1000000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 40.47
TME	N/A	10	$ 49.06
		100	$ 42.28
		250	$ 39.84

Description

General part information

MPI005 Series

Pushbutton Switch DPST-NO/NC Anti-Vandal, Illuminated Panel Mount, Front
