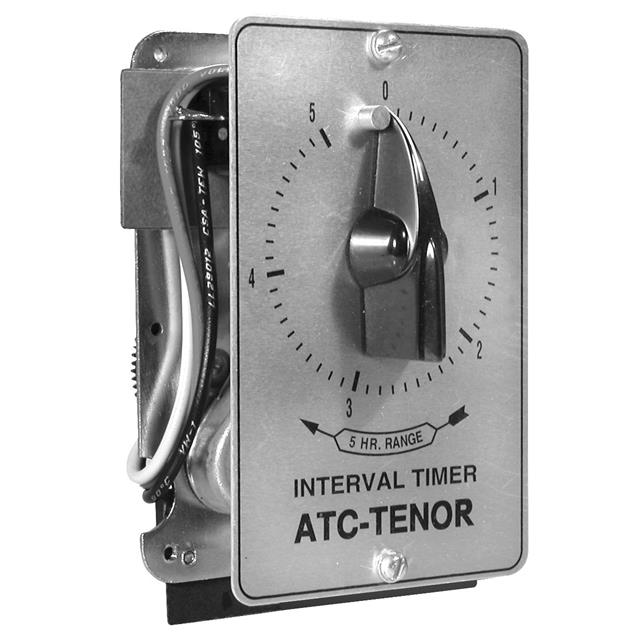

400-07-A

Active

ATC-Diversified Electronics

RELAY TIME DELAY 60MIN 15A 120V

Search across all available documentation for this part.

Active

ATC-Diversified Electronics

RELAY TIME DELAY 60MIN 15A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	400-07-A

Contact Rating @ Voltage [custom]	120 VAC
Contact Rating @ Voltage [custom]	15 A
Delay Time [Max]	60 Min
Delay Time [Min]	0 Min
Function	Interval
Mounting Type	Chassis Mount
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

RELAY TIME DELAY 60MIN 15A 120V

Part	Mounting Type	Function	Timing Adjustment Method	Timing Initiate Method	Termination Style	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Voltage - Supply	Relay Type	Delay Time [Max]	Delay Time [Min]
ATC-Diversified Electronics 400-07-A	Chassis Mount	Interval	Hand Dial	Input Voltage	Screw Terminal	120 VAC	15 A	120 VAC	Mechanical Relay	60 Min	0 Min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Interval Time Delay Relay SPDT (1 Form C) 0 Min ~ 60 Min Delay 15A @ 120VAC Chassis Mount
