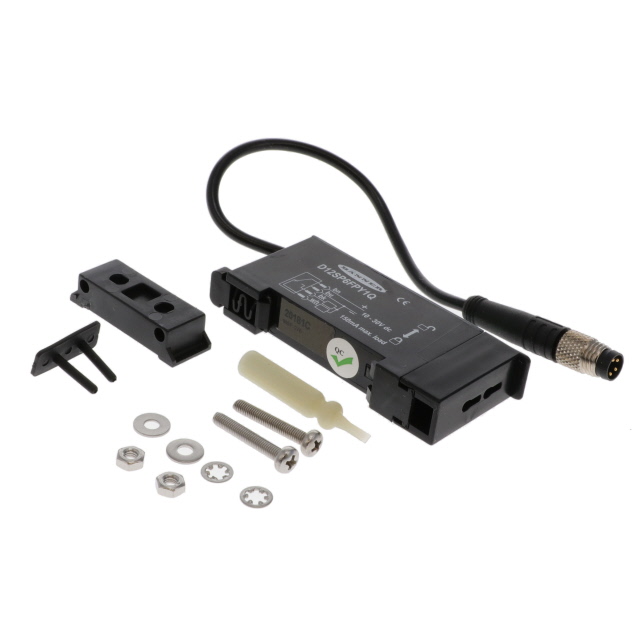

D12SP6FPY1Q

Active

D12 SERIES: HIGH SPEED PLASTIC FIBER OPTIC

Active

D12 SERIES: HIGH SPEED PLASTIC FIBER OPTIC

Description

General part information

Fiber Optic Optical Sensor PNP

Parameters and characteristics for this part

Part	Ingress Protection	Output Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Response Time	Sensing Method	Adjustment Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Connection Method	Light Source	Cable Length
BANNER ENGINEERING D12SP6FPY1Q	IEC IP11 NEMA 2 NEMA 2 IEC IP11	PNP	70 °C	-20 °C	500 µs	Fiber Optic	Adjustable Potentiometer	10 VDC	30 VDC	Connector M12
BANNER ENGINEERING D12SP6FP	IEC IP11 NEMA 2 NEMA 2 IEC IP11	PNP	70 °C	-20 °C	500 µs	Fiber Optic	Adjustable Potentiometer	10 VDC	30 VDC	Cable	LED	78.74 in
BANNER ENGINEERING D12SP6FPY	IEC IP11 NEMA 2 NEMA 2 IEC IP11	PNP	70 °C	-20 °C	500 µs	Fiber Optic	Adjustable Potentiometer	10 VDC	30 VDC	Cable	LED	78.74 in
BANNER ENGINEERING D12SP6FVHQ	IEC IP11 NEMA 2 NEMA 2 IEC IP11	PNP	70 °C	-20 °C	500 µs	Fiber Optic	Adjustable Potentiometer	10 VDC	30 VDC	Connector M12
BANNER ENGINEERING D12SP6FPQ	IEC IP11 NEMA 2 NEMA 2 IEC IP11	PNP	70 °C	-20 °C	500 µs	Fiber Optic	Adjustable Potentiometer	10 VDC	30 VDC	Connector	LED
BANNER ENGINEERING D12SP6FVYQ	IEC IP11 NEMA 2 NEMA 2 IEC IP11	PNP	70 °C	-20 °C	500 µs	Fiber Optic	Adjustable Potentiometer	10 VDC	30 VDC	Connector M12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
