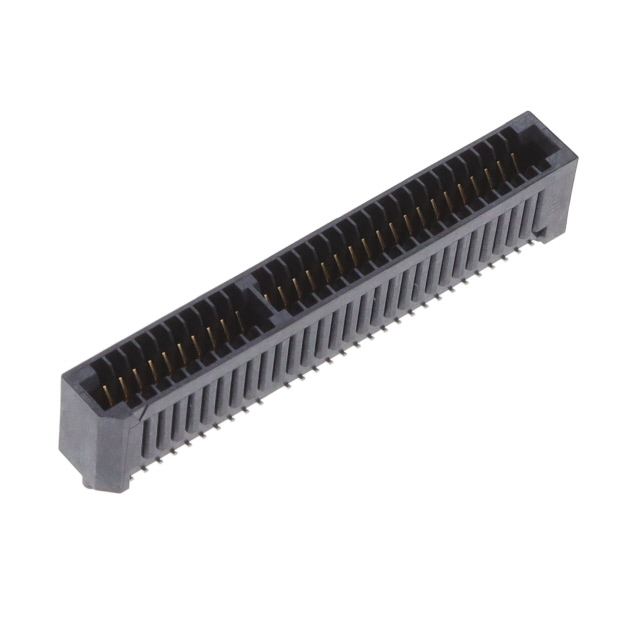

MECF-30-01-L-DV-K-TR
ActiveSamtec Inc.
CONN EDGE DUAL FMALE 60POS 0.05
Deep-Dive with AI
Search across all available documentation for this part.
MECF-30-01-L-DV-K-TR
ActiveSamtec Inc.
CONN EDGE DUAL FMALE 60POS 0.05
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MECF-30-01-L-DV-K-TR |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Beryllium Copper |
| Contact Type | Cantilever |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.80 | |
| 25 | $ 6.15 | |||
| 50 | $ 5.71 | |||
| 100 | $ 5.44 | |||
| Digi-Reel® | 1 | $ 6.80 | ||
| 25 | $ 6.15 | |||
| 50 | $ 5.71 | |||
| 100 | $ 5.44 | |||
| Tape & Reel (TR) | 250 | $ 5.44 | ||
| 500 | $ 5.11 | |||
Description
General part information
MECF-30 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.050" (1.27mm) Black
