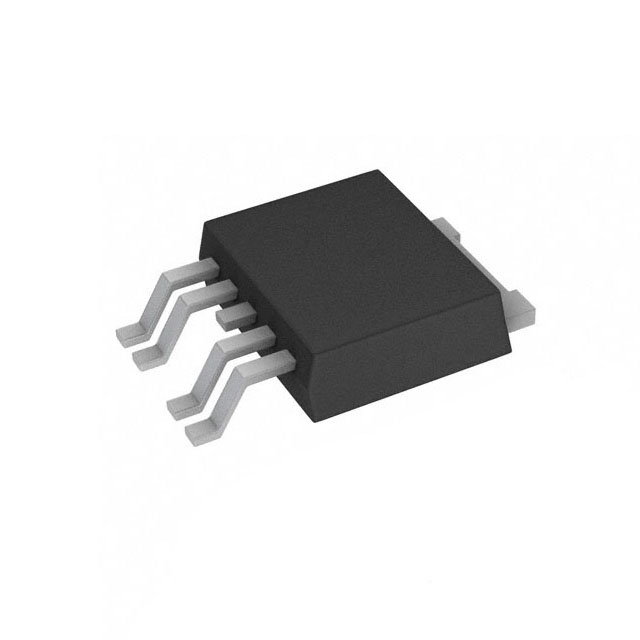

TLE4275DV33ATMA1
ObsoleteInfineon Technologies
THE TLE4275D V33 IS A MONOLITHIC INTEGRATED LOW DROPOUT FIXED OUTPUT VOLTAGE REGULATOR FOR LOADS UP TO 400MA.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLE4275DV33ATMA1
ObsoleteInfineon Technologies
THE TLE4275D V33 IS A MONOLITHIC INTEGRATED LOW DROPOUT FIXED OUTPUT VOLTAGE REGULATOR FOR LOADS UP TO 400MA.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE4275DV33ATMA1 |
|---|---|
| Control Features | Reset |
| Current - Output | 400 mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) [Max] | 30 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | DPAK (4 Leads + Tab), TO-252-5, TO-252AD |
| Protection Features | Short Circuit, Over Current, Transient Voltage, Reverse Polarity, Over Temperature |
| PSRR | 60 dB |
| Qualification | AEC-Q100 |
| Supplier Device Package | PG-TO252-5-11 |
| Voltage - Input (Max) [Max] | 42 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.55 | |
| 10 | $ 5.83 | |||
| 25 | $ 5.40 | |||
| 100 | $ 4.93 | |||
| 250 | $ 4.71 | |||
| 500 | $ 4.57 | |||
| 1000 | $ 4.46 | |||
| Digi-Reel® | 1 | $ 2.96 | ||
| 10 | $ 2.21 | |||
| 25 | $ 2.03 | |||
| 100 | $ 1.82 | |||
| 250 | $ 1.72 | |||
| 500 | $ 1.66 | |||
| 1000 | $ 1.62 | |||
Description
General part information
TLE4275 Series
An integrated reset generator with adjustable power-on delay time as well as several protection circuits predestine the IC for supplying microprocessor systems in an automotive environment.
