5-1375582-5

Active

TE Connectivity AMP Connectors

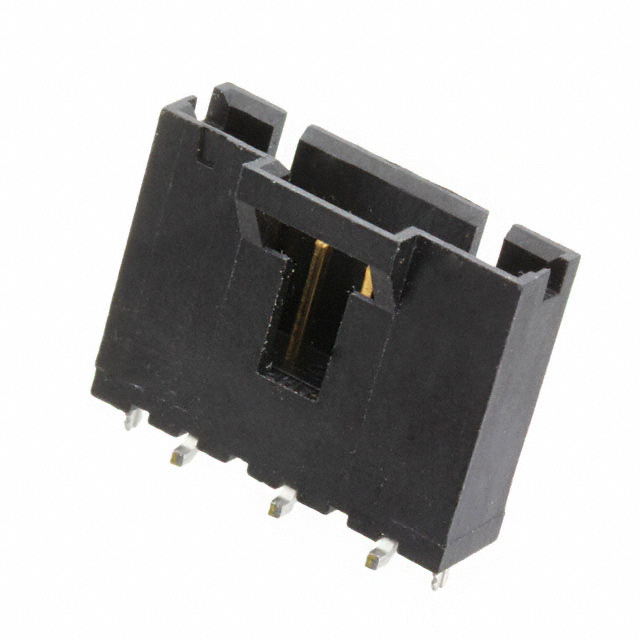

CONN HEADER SMD 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-1375582-5

Active

TE Connectivity AMP Connectors

CONN HEADER SMD 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.50
		10	$ 4.01
		100	$ 3.56
	Tape & Reel (TR)	900	$ 2.42
		1800	$ 2.17
		2700	$ 2.00

Description

General part information

1375582 Series

Connector Header Surface Mount 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-1375582-5	1375582 Series

Applications	Medical, General Purpose, Automotive, Telecommunications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating [x]	0.23 in	0.23 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Latch Holder	Latch Holder
Features	Board Lock, Keying Slot	Board Lock, Keying Slot
Insulation Color	Black	Black
Insulation Height	13.6 mm	13.6 mm
Insulation Height	0.535 in	0.535 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	6	6 - 23
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

1375582 Series

CONN HEADER SMD 12POS 2.54MM

Part	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Positions	Insulation Height	Insulation Height	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Style	Applications	Shrouding	Number of Positions Loaded	Contact Material	Features	Fastening Type	Termination	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Connector Type
TE Connectivity AMP Connectors 6-1375582-1	Thermoplastic	100 µin	2.54 µm	Square	12	13.6 mm	0.535 in	UL94 V-0	3 A	Surface Mount	Gold	Tin	15 µin	0.38 µm	1	0.1 in	2.54 mm	Board to Board, Cable	Automotive, General Purpose, Medical, Telecommunications	Shrouded - 4 Wall	All	Brass	Board Lock, Keying Slot	Latch Holder	Solder	Black	0.23 in	5.84 mm	105 ░C	-65 ░C	Male Pin	Header
TE Connectivity AMP Connectors 6-1375582-9	Thermoplastic	100 µin	2.54 µm	Square	20	13.6 mm	0.535 in	UL94 V-0	3 A	Surface Mount	Gold	Tin	15 µin	0.38 µm	1	0.1 in	2.54 mm	Board to Board, Cable	Automotive, General Purpose, Medical, Telecommunications	Shrouded - 4 Wall	All	Brass	Board Lock, Keying Slot	Latch Holder	Solder	Black	0.23 in	5.84 mm	105 ░C	-65 ░C	Male Pin	Header
TE Connectivity AMP Connectors 5-1375582-9	Thermoplastic	100 µin	2.54 µm	Square	10	13.6 mm	0.535 in	UL94 V-0	3 A	Surface Mount	Gold	Tin	15 µin	0.38 µm	1	0.1 in	2.54 mm	Board to Board, Cable	Automotive, General Purpose, Medical, Telecommunications	Shrouded - 4 Wall	All	Brass	Board Lock, Keying Slot	Latch Holder	Solder	Black	0.23 in	5.84 mm	105 ░C	-65 ░C	Male Pin	Header
TE Connectivity AMP Connectors 7-1375582-4	Thermoplastic	100 µin	2.54 µm	Square		13.6 mm	0.535 in	UL94 V-0	3 A	Surface Mount	Gold	Tin	15 µin	0.38 µm	1	0.1 in	2.54 mm	Board to Board, Cable	Automotive, General Purpose, Medical, Telecommunications	Shrouded - 4 Wall	All	Brass	Board Lock, Keying Slot	Latch Holder	Solder	Black	0.23 in	5.84 mm	105 ░C	-65 ░C	Male Pin	Header
TE Connectivity AMP Connectors 6-1375582-0	Thermoplastic	100 µin	2.54 µm	Square	11	13.6 mm	0.535 in	UL94 V-0	3 A	Surface Mount	Gold	Tin	15 µin	0.38 µm	1	0.1 in	2.54 mm	Board to Board, Cable	Automotive, General Purpose, Medical, Telecommunications	Shrouded - 4 Wall	All	Brass	Board Lock, Keying Slot	Latch Holder	Solder	Black	0.23 in	5.84 mm	105 ░C	-65 ░C	Male Pin	Header
TE Connectivity AMP Connectors 7-1375582-2	Thermoplastic	100 µin	2.54 µm	Square	23	13.6 mm	0.535 in	UL94 V-0	3 A	Surface Mount	Gold	Tin	15 µin	0.38 µm	1	0.1 in	2.54 mm	Board to Board, Cable	Automotive, General Purpose, Medical, Telecommunications	Shrouded - 4 Wall	All	Brass	Board Lock, Keying Slot	Latch Holder	Solder	Black	0.23 in	5.84 mm	105 ░C	-65 ░C	Male Pin	Header
TE Connectivity AMP Connectors 6-1375582-8	Thermoplastic	100 µin	2.54 µm	Square	19	13.6 mm	0.535 in	UL94 V-0	3 A	Surface Mount	Gold	Tin	15 µin	0.38 µm	1	0.1 in	2.54 mm	Board to Board, Cable	Automotive, General Purpose, Medical, Telecommunications	Shrouded - 4 Wall	All	Brass	Board Lock, Keying Slot	Latch Holder	Solder	Black	0.23 in	5.84 mm	105 ░C	-65 ░C	Male Pin	Header
TE Connectivity AMP Connectors 5-1375582-5	Thermoplastic	100 µin	2.54 µm	Square	6	13.6 mm	0.535 in	UL94 V-0	3 A	Surface Mount	Gold	Tin	15 µin	0.38 µm	1	0.1 in	2.54 mm	Board to Board, Cable	Automotive, General Purpose, Medical, Telecommunications	Shrouded - 4 Wall	All	Brass	Board Lock, Keying Slot	Latch Holder	Solder	Black	0.23 in	5.84 mm	105 ░C	-65 ░C	Male Pin	Header
TE Connectivity AMP Connectors 6-1375582-3	Thermoplastic	100 µin	2.54 µm	Square	14	13.6 mm	0.535 in	UL94 V-0	3 A	Surface Mount	Gold	Tin	15 µin	0.38 µm	1	0.1 in	2.54 mm	Board to Board, Cable	Automotive, General Purpose, Medical, Telecommunications	Shrouded - 4 Wall	All	Brass	Board Lock, Keying Slot	Latch Holder	Solder	Black	0.23 in	5.84 mm	105 ░C	-65 ░C	Male Pin	Header
