32S151-S00L5

Active

Rosenberger

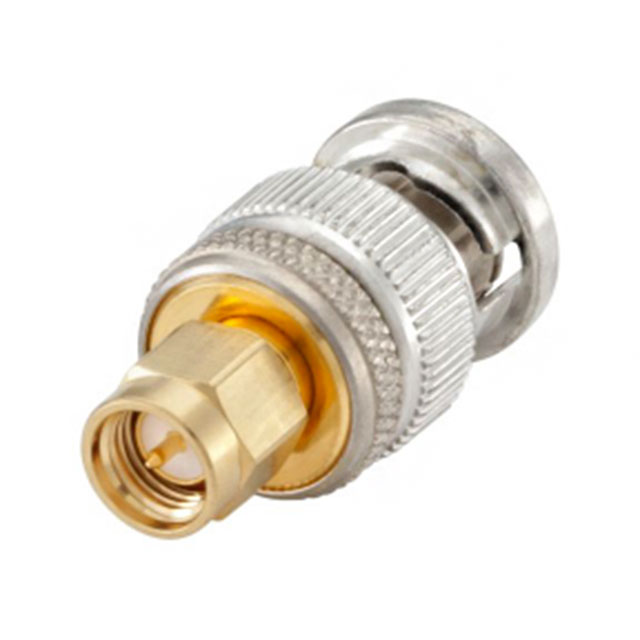

COAX ADAPT BNC TO SMA

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT BNC TO SMA

Technical Specifications

Parameters and characteristics for this part

Specification	32S151-S00L5

Adapter Series	BNC to SMA
Adapter Type	Plug to Plug
Body Finish	Nickel, Gold
Body Material	Brass, Beryllium Copper
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Impedance	Adapter Series	Center Contact Material	Convert To (Adapter End)	Body Finish	Center Gender	Center Contact Plating	Conversion Type	Frequency - Max [Max]	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Body Material	Dielectric Material	Adapter Type	Mating Cycles	Style	Fastening Type
Rosenberger 32S151-S00L5	50 Ohms	BNC to SMA	Brass	BNC Plug Male Pin	Gold Nickel	Male to Male	Gold	Between Series	6000 MHz	SMA Plug Male Pin	-65 ░C	165 °C	Free Hanging (In-Line)	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Plug to Plug	500	Straight	Bayonet Lock Threaded
Rosenberger 32S151-K00L5	50 Ohms	BNC to SMA	Beryllium Copper	BNC Jack Female Socket	Gold Nickel		Gold	Between Series	6000 MHz	SMA Plug Male Pin	-65 ░C	165 °C	Free Hanging (In-Line)	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Plug to Jack	500	Straight	Bayonet Lock Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To BNC Plug, Male Pin 50 Ohms
