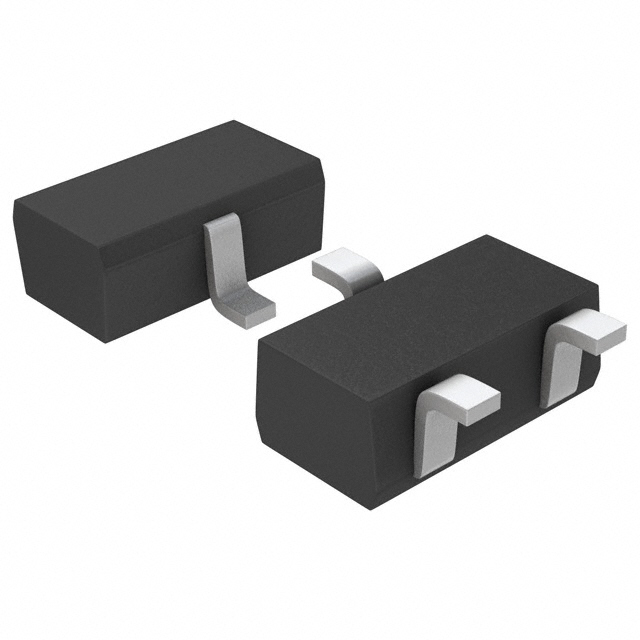

2SA2162G0L

Obsolete

Panasonic Industrial Automation Sales

TRANS PNP 12V 0.5A SSSMINI3-F2

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS PNP 12V 0.5A SSSMINI3-F2

Technical Specifications

Parameters and characteristics for this part

Specification	2SA2162G0L

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	270
Frequency - Transition	200 MHz
Mounting Type	Surface Mount
Operating Temperature	125 ¯C
Package / Case	SOT-723
Power - Max [Max]	100 mW
Supplier Device Package	SSSMini3-F2
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	12 V

Part	Power - Max [Max]	Frequency - Transition	Operating Temperature	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case
Panasonic Industrial Automation Sales 2SA216200L	100 mW	200 MHz	125 ¯C	270	500 mA	250 mV	PNP	SSSMini3-F1	100 nA	Surface Mount	12 V	SOT-723
Panasonic Industrial Automation Sales 2SA2162G0L	100 mW	200 MHz	125 ¯C	270	500 mA	250 mV	PNP	SSSMini3-F2	100 nA	Surface Mount	12 V	SOT-723

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 12 V 500 mA 200MHz 100 mW Surface Mount SSSMini3-F2

Technical documentation and resources

No documents available
