122340

Active

Amphenol RF

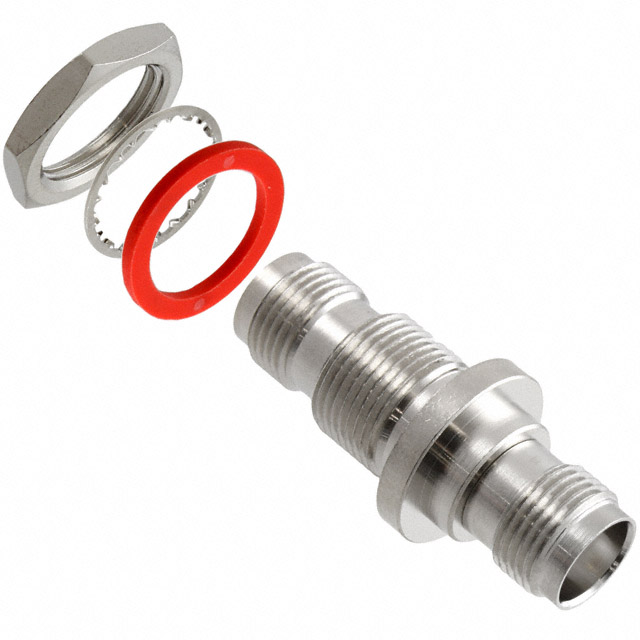

CONN ADAPT JACK-JACK TNC 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

122340

Active

Amphenol RF

CONN ADAPT JACK-JACK TNC 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	122340

Adapter Series	TNC to TNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, TNC Jack
Dielectric Material	Polyoxymethylene (POM) Acetal
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Mounting Feature	Bulkhead
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

1223 Series

Part	Shield Termination	Center Contact Material	Mounting Feature	Frequency - Max [Max]	Mating Cycles	Body Material	Voltage Rating	Includes	Contact Termination	Impedance	Housing Color	Number of Ports	Center Contact Plating	Body Finish	Connector Style	Connector Type	Features	Dielectric Material	Center Gender	Adapter Series	Convert From (Adapter End)	Convert To (Adapter End)	Adapter Type	Conversion Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Cable Group	Cable Group [Min]	Cable Group [Max]	Ingress Protection
Amphenol RF 122334	Solder Tag	Phosphor Bronze	Bulkhead - Rear Side Nut	11 GHz	500	Brass	500 V	1 Connector 1 Lockwasher 1 Nut 1 Solder Tag	Solder Cup	50 Ohms	Silver	1	Gold	Nickel	TNC	Female Socket Receptacle	Extended Insulation	Polyoxymethylene (POM) Acetal
Amphenol RF 122344		Phosphor Bronze	Bulkhead	11 GHz		Brass		1 Connector 1 Lockwasher 1 Nut		50 Ohms			Gold	Nickel				Polyoxymethylene (POM) Acetal	Female to Female	TNC to TNC	TNC Jack Female Socket	Female Socket TNC Jack	Jack to Jack	Same Series	Straight
Amphenol RF 122350		Brass		11 GHz		Brass				50 Ohms			Gold	Nickel				Polyoxymethylene (POM) Acetal	Male to Male	TNC to TNC		Male Pin TNC Plug	Plug to Plug	Same Series	Straight	85 °C	-40 °C	Free Hanging (In-Line)
Amphenol RF 122330	Solder Tag	Brass	Bulkhead - Rear Side Nut	11 GHz	500	Brass	500 V	1 Connector 1 Lockwasher 1 Nut 1 Solder Tag	Solder Cup	50 Ohms	Silver	1	Gold	Nickel	TNC	Male Pin Receptacle		Polytetrafluoroethylene (PTFE)
Amphenol RF 122358	Crimp	Beryllium Copper	Bulkhead - Front Side Nut	11 GHz	500	Brass	500 V	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve	Crimp	50 Ohms	Silver	1	Gold	Nickel	TNC	Female Socket Jack		Polyoxymethylene (POM) Acetal											188 316 Double Braid M17/152-RD316 RG-179
Amphenol RF 122389	Solder	Phosphor Bronze	Flange	11 GHz	500	Brass	500 V	Connector Contact Insulator	Crimp	50 Ohms	Silver	1	Gold	Nickel	TNC	Female Socket Jack		Polytetrafluoroethylene (PTFE)								165 °C	-65 ░C		RG-405 Semi Rigid	0.085 in	0.086 in
Amphenol RF 122346		Phosphor Bronze	Bulkhead	11 GHz		Brass		1 Connector 1 Lockwasher 1 Nut		50 Ohms			Gold	Nickel			Isolated	Polyoxymethylene (POM) Acetal	Female to Female	TNC to TNC	TNC Jack Female Socket	Female Socket TNC Jack	Jack to Jack	Same Series	Straight
Amphenol RF 122340		Phosphor Bronze	Bulkhead	11 GHz		Brass		1 Connector 1 Gasket 1 Lockwasher 1 Nut		50 Ohms			Gold	Nickel				Polyoxymethylene (POM) Acetal	Female to Female	TNC to TNC	TNC Jack Female Socket	Female Socket TNC Jack	Jack to Jack	Same Series	Straight	85 °C	-40 °C
Amphenol RF 122381	Clamp	Brass		11 GHz	500	Brass	500 V	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer	Solder	50 Ohms	Silver	1	Gold	Nickel	TNC	Male Pin Plug		Polytetrafluoroethylene (PTFE)										Free Hanging (In-Line)	213 214 225 302 393 87 8A 9 9A 9B RG-8			Weatherproof
Amphenol RF 122354		Phosphor Bronze		11 GHz		Brass				50 Ohms			Gold	Nickel				Polyoxymethylene (POM) Acetal	Female to Female	TNC to TNC Dual	TNC Jack Female Socket	Female Socket (2) TNC Jack	Jack to Jack	Same Series	T-Shape			Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.99
		10	$ 6.89
		25	$ 6.22
		50	$ 5.77
		100	$ 5.36
		250	$ 4.87
		500	$ 4.54
		1000	$ 4.25
		2500	$ 3.90

Description

General part information

1223 Series

Adapter Coaxial Connector TNC Jack, Female Socket To TNC Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available
