R22-10
ActiveJST Sales America Inc.

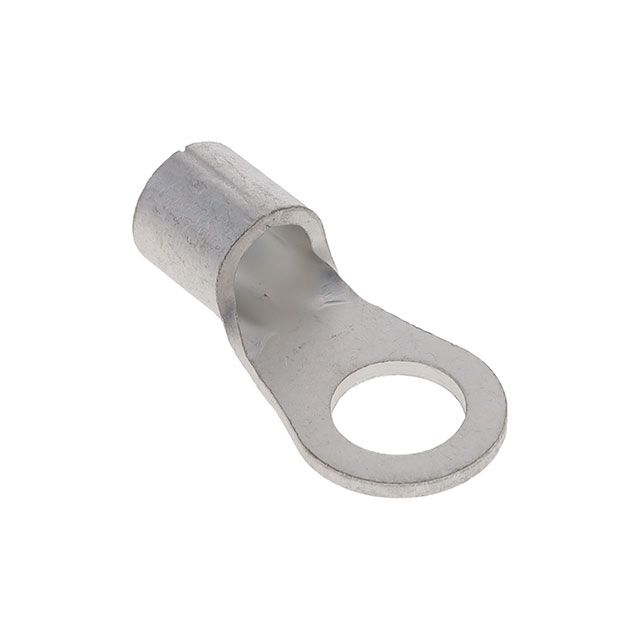

CONN RING FLAT 4AWG #3/8 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
R22-10
ActiveJST Sales America Inc.
CONN RING FLAT 4AWG #3/8 CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R22-10 |
|---|---|
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall [x] | 36.7 mm |
| Length - Overall [x] | 1.445 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 3/8 Stud |
| Terminal Type | Flat Sided |
| Termination | Crimp |
| Thickness | 1.8 mm |
| Thickness | 0.071 in |
| Wire Gauge | 4 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.78 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.56 | |||
| 300 | $ 0.51 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.40 | |||
| 2500 | $ 0.37 | |||
Description
General part information
R22-10 Series
Ring Terminal Connector 3/8 Stud Flat Sided 4 AWG Crimp
