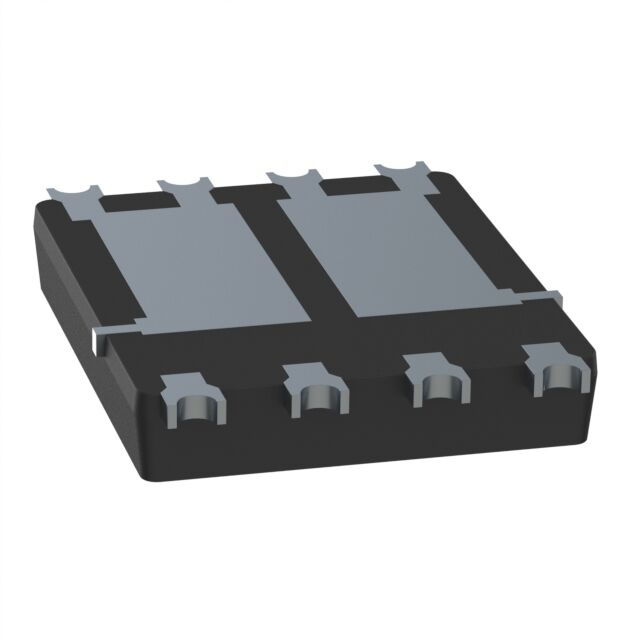

TSM076NH04DCR RLG

Active

Taiwan Semiconductor Corporation

MOSFET 2N-CH 40V 14A 8PDFNU

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

MOSFET 2N-CH 40V 14A 8PDFNU

Technical Specifications

Parameters and characteristics for this part

Specification	TSM076NH04DCR RLG

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	34 A, 14 A
Drain to Source Voltage (Vdss)	40 V
Gate Charge (Qg) (Max) @ Vgs	19 nC
Input Capacitance (Ciss) (Max) @ Vds	1217 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power - Max [Max]	55.6 W
Rds On (Max) @ Id, Vgs	7.6 mOhm
Supplier Device Package	8-PDFNU (5x6)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	3.6 V

Part	Current - Continuous Drain (Id) @ 25°C	Package / Case	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Supplier Device Package	Power - Max [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Input Capacitance (Ciss) (Max) @ Vds	Configuration	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs
Taiwan Semiconductor Corporation TSM076NH04DCR RLG	14 A 34 A	8-PowerTDFN	7.6 mOhm	40 V	8-PDFNU (5x6)	55.6 W	Surface Mount	-55 °C	175 ░C	MOSFET (Metal Oxide)	1217 pF	2 N-Channel (Dual)	3.6 V	19 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 40V 14A (Ta), 34A (Tc) 55.6W (Tc) Surface Mount 8-PDFNU (5x6)
